Cab and Covers
4.6 Model 8042, 10042, 10054 Legacy Rev. 10/03
6. Working through the right dash panel opening,
disconnect the transmission travel and gear select
lever wiring connector (1).
7. Remove two hex socket-head screws (2), securing
the transmission travel and gear select lever (3) to
the steering column.
8. Remove the transmission travel and gear select
lever (3) and collar (4).
d. Transmission Travel and Gear Select Lever
Installation
1. Position the transmission travel and gear select lever
(3) onto the steering column, aligning the pin (5) with
the hole (6) in the steering column.
2. Attach the transmission travel and gear select lever
with the collar (4) and two hex socket-head screws (2).
Tighten the screws and nuts securely, but DO NOT
overtighten. Overtightening will cause the select
lever to break.
3. Plug the wiring connector (1) into the harness
connector.
4. Install the left dash panel (7), and secure with four
button-head capscrews.
5. Install the right dash panel (8), and secure with four
button-head capscrews.
6. Connect the battery negative (-) cable or cables.
4.3.3 Steering Column/Valve Replacement
a. Steering Column and Valve Removal
1. Park the vehicle on a firm, level surface. Level the
vehicle, ground the carriage, place the travel select
lever in the (N) NEUTRAL position, place the neutral
lock lever in the (N) NEUTRAL LOCK position,
engage the parking brake and turn the engine OFF.
2. Place an Accident Prevention Tag on the ignition key
switch, stating that the vehicle should not be
operated. (Refer to Section 1.5, “Accident
Prevention Tags.”)

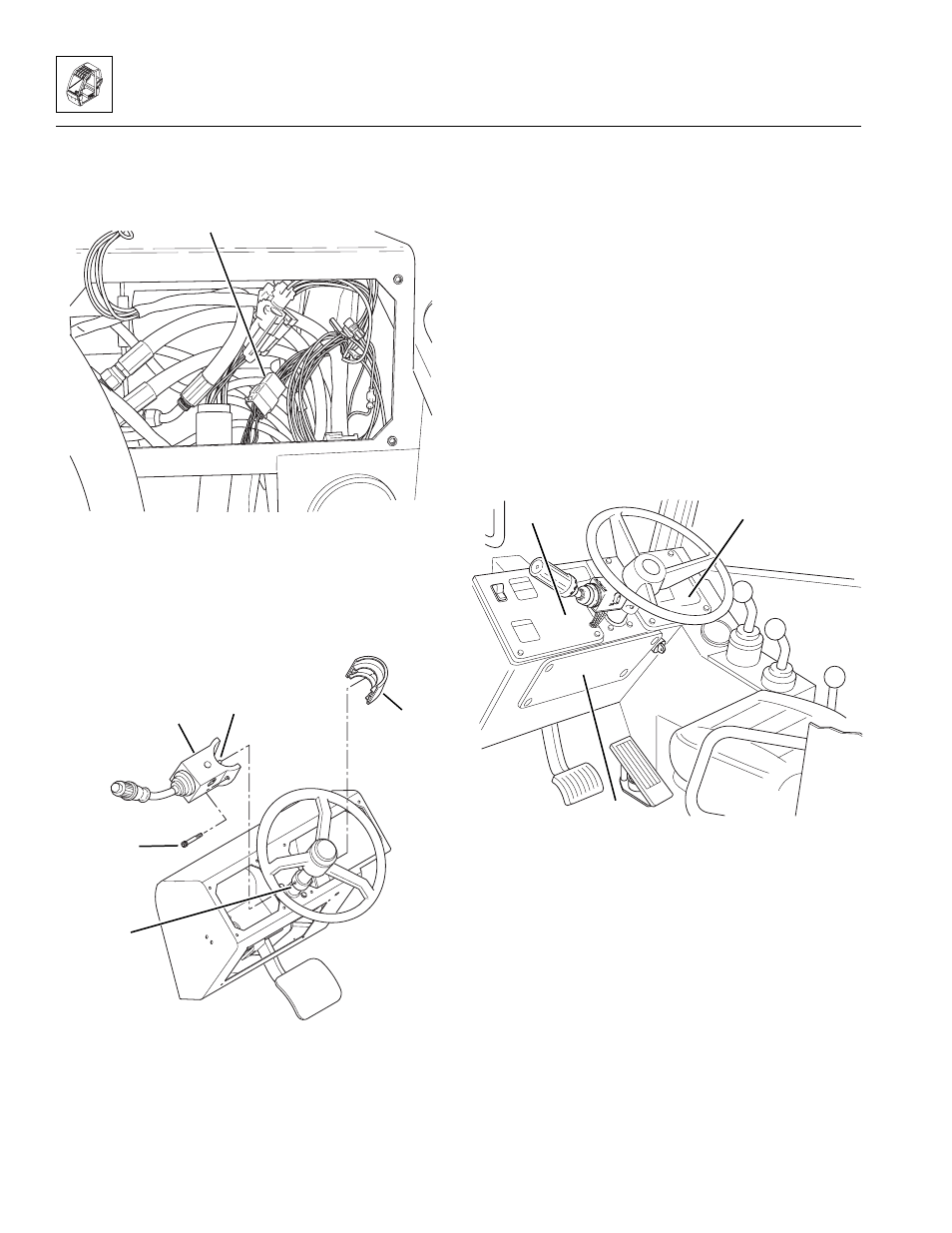

MA8640
