3.117 Model 8042, 10042, 10054 Legacy Rev. 03/04
Boom

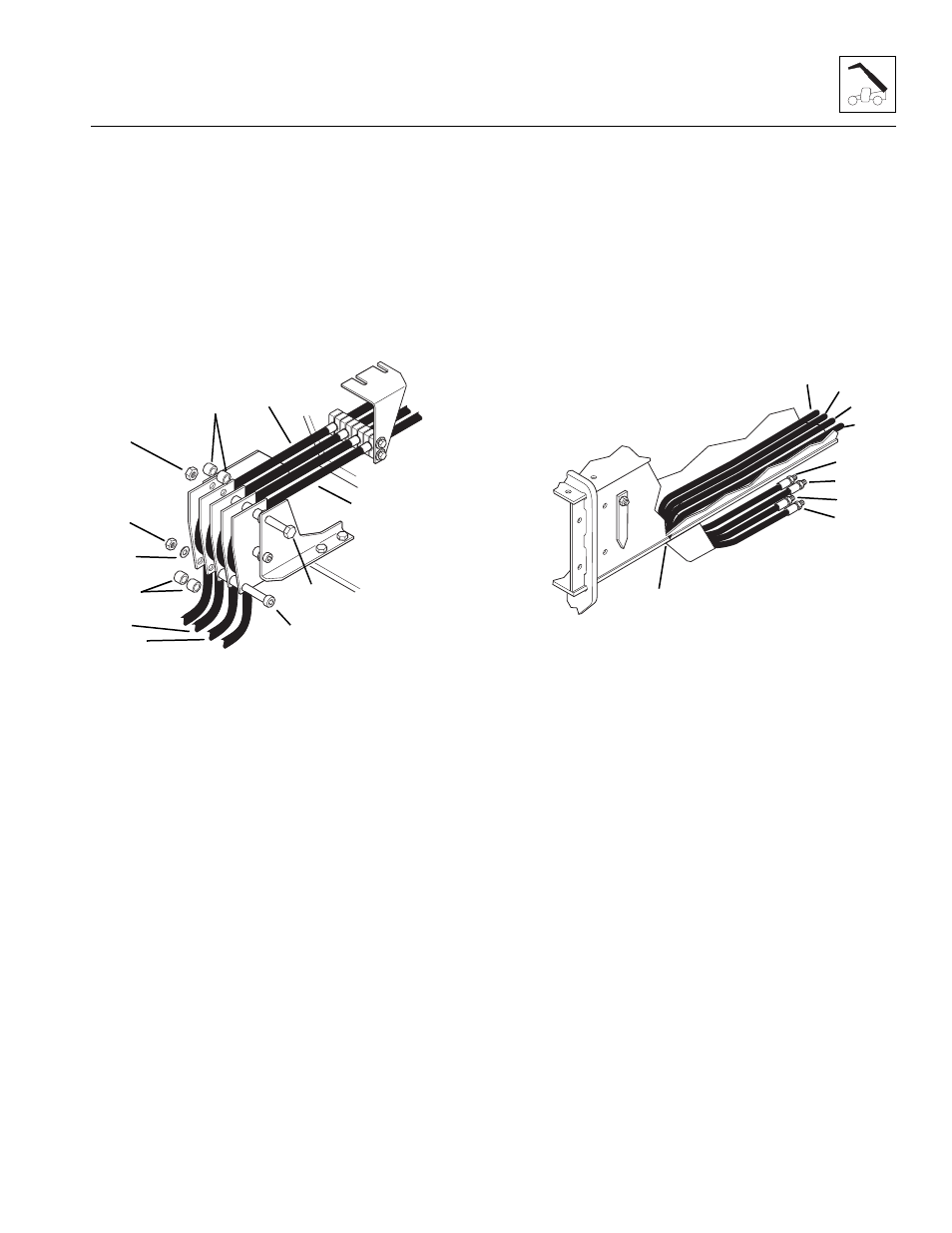

j. Insert the shoulder bolt (19) back through the
plates of the hose reel, inserting the spacers (20)
back in position between the plates as the
shoulder bolt is inserted. Place the flat
washer (18) onto the shoulder bolt and secure in
place with a new elastic locknut (17). Tighten
securely.
50. Tie the strings (positioned inside the outer boom
during the outer boom installation) to the male end of
each of the Attachment Tilt and auxiliary hydraulic
hoses coming off the bottom hose reel assembly.
IMPORTANT: Keep the hoses in the same order as they
come off the hose reel. DO NOT allow the hoses to
cross.
51. Working from the front of the boom, pull each hose
through the boom assembly:
a. Pull the right side auxiliary hydraulic hose (21)
through the boom assembly. Pull the hose out
the opening (22) at the bottom of the outer boom.
b. Pull the right side Attachment Tilt hose (23)
through the boom assembly. Keep the right side
Attachment Tilt hose to the left of the right side
auxiliary hydraulic hose. Pull the hose out the
opening (22) at the bottom of the outer boom.
c. Pull the left side Attachment Tilt hose (24) through
the boom assembly, using the hoses already
down the boom as a guide. Keep the left side
Attachment Tilt hose to the left of the hoses
already installed. Pull the hose out the
opening (22) at the bottom of the outer boom.
d. Pull the left side auxiliary hydraulic hose (25)
through the boom assembly, using the hoses
already down the boom as a guide. Keep the left
side auxiliary hydraulic hose to the left of the
hoses already installed. Pull the hose out the
opening (22) at the bottom of the outer boom.
MH1690
10
11
12
13
14
15
16
17
18
19
20
MH1410
23
21
24
25
21
22
23
24
25
