June 2004 Isis® Sonar User's Manual, Volume1 80
2. Choose the printer icon from the taskbar or choose File→Print
from the main menu.
Isis displays the Plotter Setup dialog box (Figure 5-1).

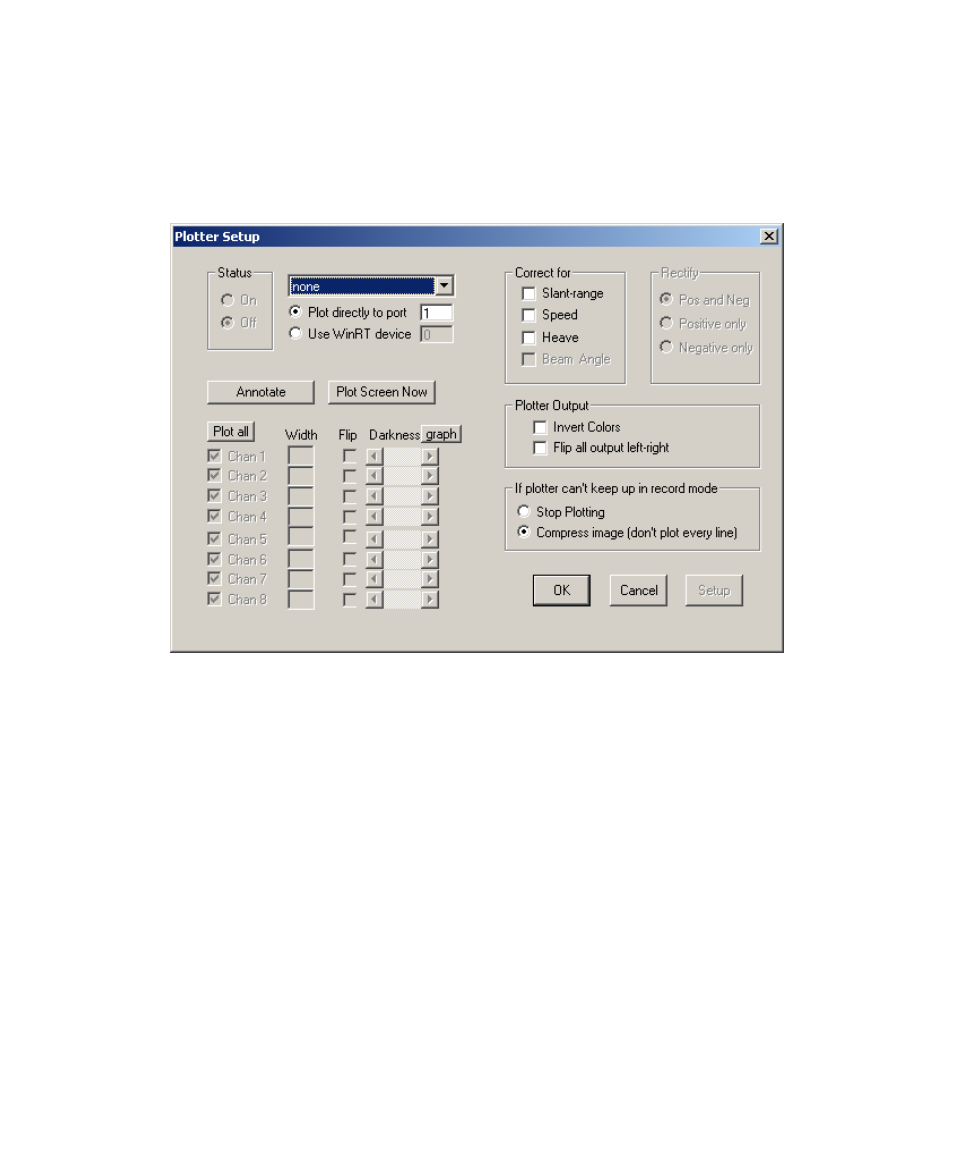

Figure 5-1: Plotter Setup dialog box with default settings
3. Choose your plotter or printer from the combination box. The
default is none. Leave the choice as none if you do not have a
plotter/printer attached to your system; otherwise, problems may
result.
4. Put your Plotter Status to On when you’re ready to print or plot.
5. If you want to print a single screen of paused imagery, click Plot
Screen Now; if you want to print your waterfall imagery in
continuously scrolling mode, click OK.
The image, including your Windows desktop, prints or plots to
the chosen device.
6. When you’re through printing, set Plotter Status to Off in the
Plotter Setup box.
Chapter 5: Printing in Isis
