June 2004 Isis® Sonar User's Manual, Volume1
98
because the position of the transducer is a constant, and therefore its depth is a
constant.

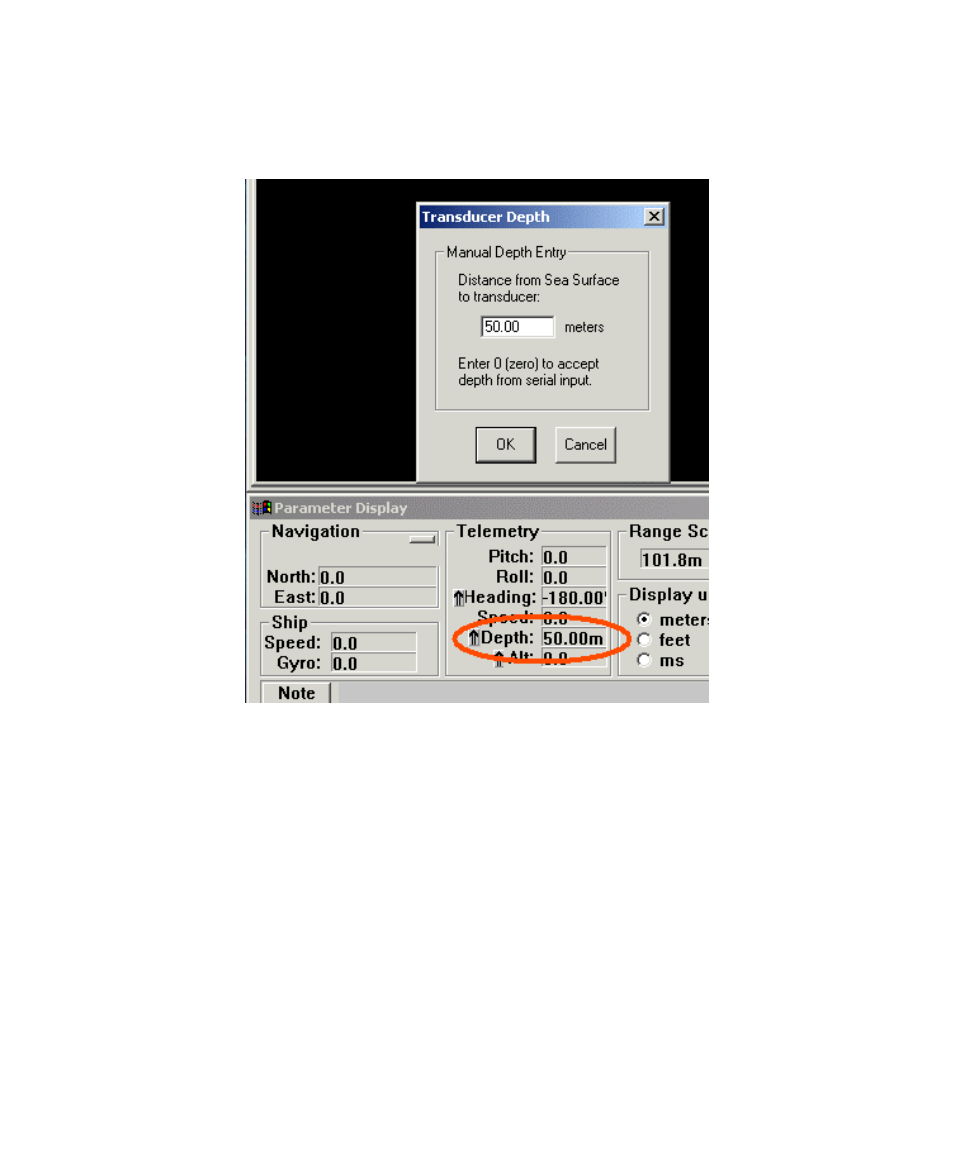

Figure 6-5: Depth equivalency in Transducer Depth and Parameter
Display
As Figure 6-5 shows, the depth you specify here is identical to the depth reported
in the Telemetry panel of the Parameter Display Window.
If Transducer Depth is specified as zero, Isis stores the towfish depth as acquired
over the serial port. Refer to ‘Serial Port Setup’ and Appendix D, ‘Serial
Interfaces’
, in the Isis User’s Manual, Volume 2, for guidance in the
configuration of serial interfaces. The Transducer Depth command is not
available in Playback Mode.
Chapter 6: Using the Configure Menu
