10.6.6 Magnetometer
Magnetic anomalies are often present and are sometimes unavoidable in
areas you scan with your sonar. It is useful to correlate magnetic intensity of
anything you might encounter with the imagery revealed by your sonar.
Through a Magnetometer graph, Isis helps you see if this correlation is
present and to what degree. Choose Window→Graph→Magnetometer
and right-click in the graph area to set up this kind of sensor graphing. A
sample graph and its controlling dialog box is shown in Figure 10-21.

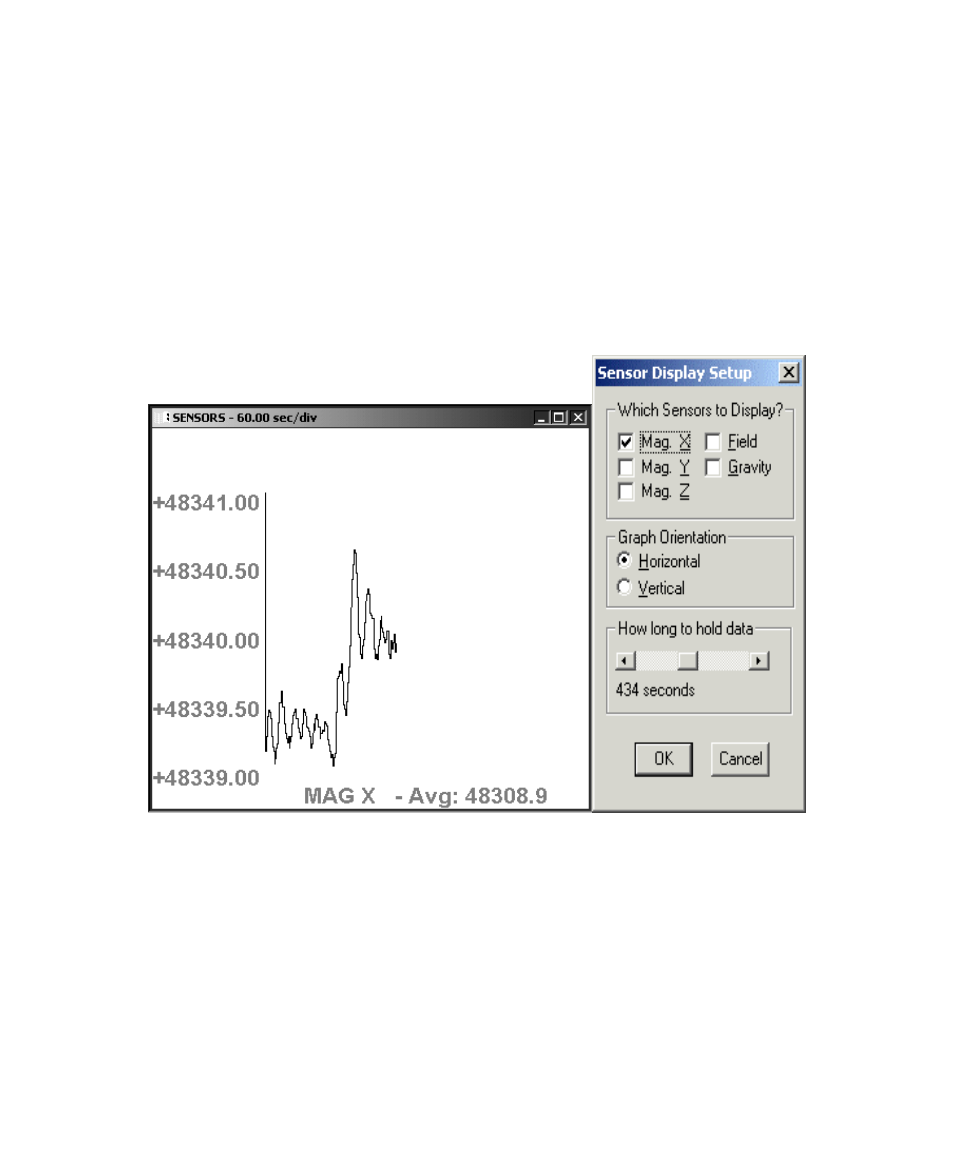

Figure 10-21: Sample magnetometer data (left) and its dialog box
(right)
