June 2004 Isis® Sonar User's Manual, Volume 1 66

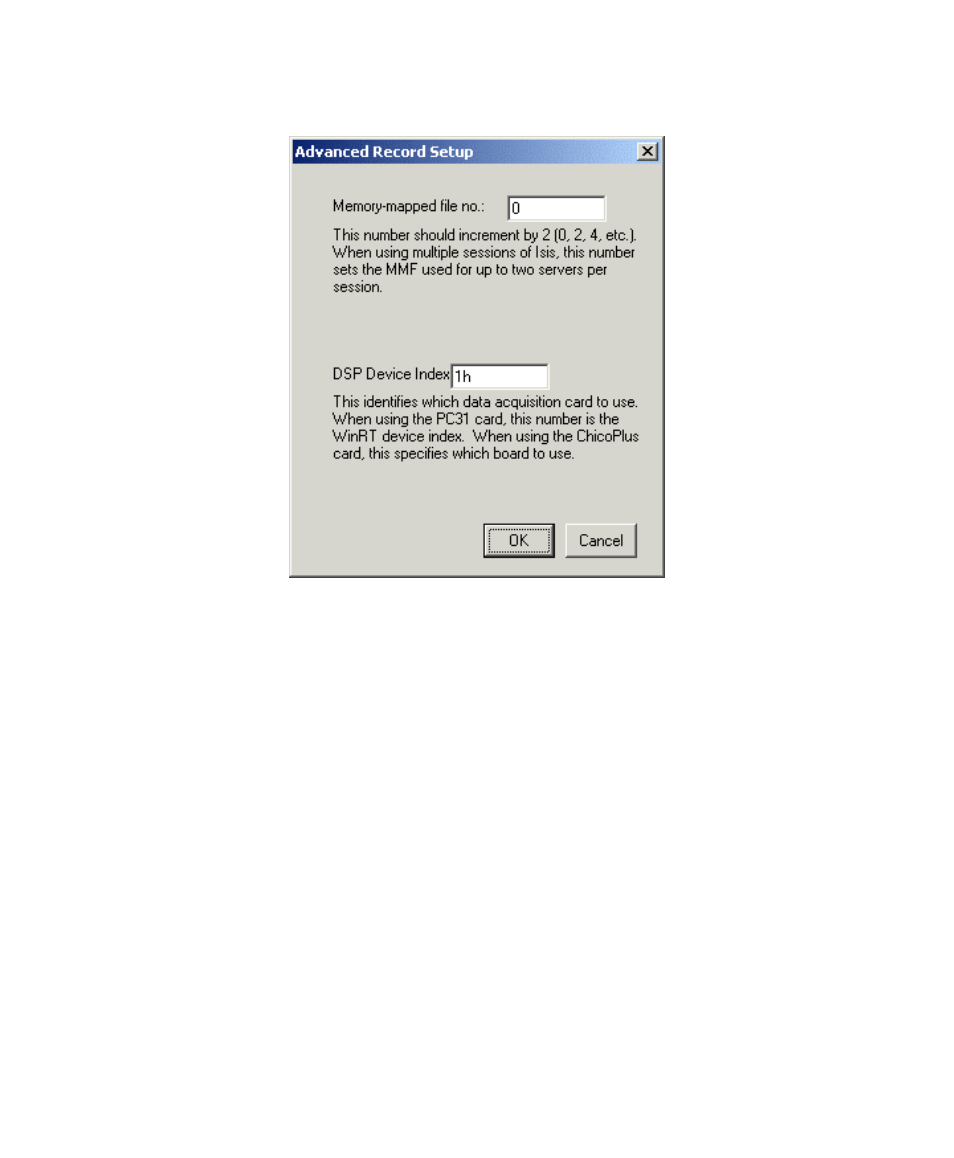

Figure 4-5. Advanced Record Setup dialog box
Here are two examples that show how this feature might be used:
• Isis session 1: Set Memory-mapped file no. to 0 and DSP
Device Index to 1. Configure this session to use SBAT81XX for
bathy and any sidescan.
• Isis session 2: Set Memory-mapped file no. to 2 and DSP
Device Index to 2. Configure this session to use Klein 2000 (or
any sonar through ChicoPlus).
Both sessions can now run simultaneously without conflicting with each
other.
4.1.3 Setting Up for a Multibeam Sonar
Multibeam sonars, such as the Reson SeaBat, have their own set of
parameters to be customized. A feature found in all of the multibeam sonar
dialog boxes in Isis is an option to enable or disable the automatic opening
of a bathymetry confidence window. From the main menu, the bathymetry
Chapter4: Setting Up Isis to Record Data
