Triton Isis - Manual (Page 41)

June 2004 Isis® Sonar User's Manual, Volume1 27

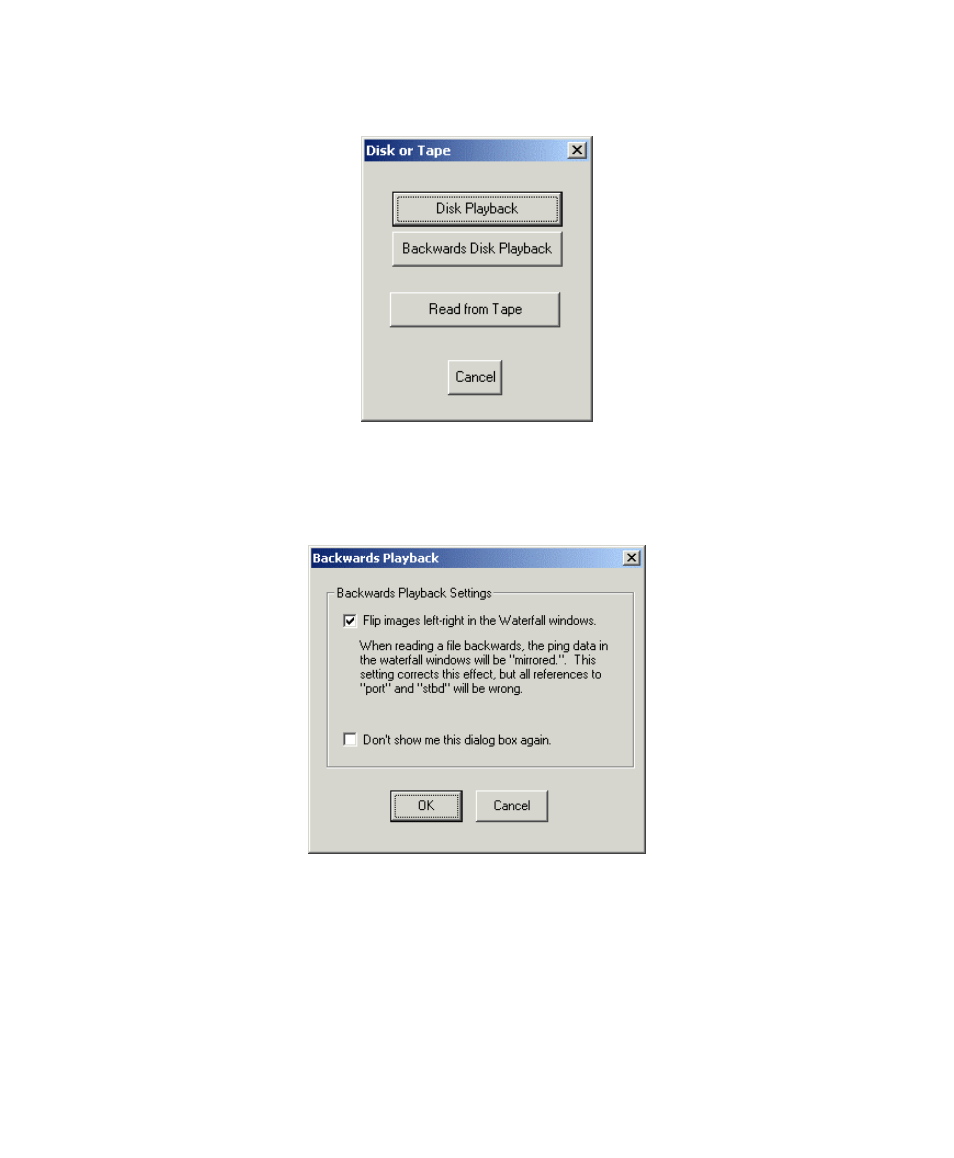

Figure 3-3. Disk or Tape playback dialog box.
3. Click Backwards Disk Playback.
The system displays the Backwards Playback dialog box (Figure 3-4).
Figure 3-4. Backwards Playback dialog box
As the Backwards Playback dialog box shows, you can flip the waterfall
image left-right to compensate for the lateral inversion caused by the
backwards playback. If you do, however, be aware that your references
to port and starboard will be similarly flipped.
Chapter 3: Using the File Menu
