10.4 Multibeam Bathymetry
If you use multibeam type of sonar, you can use the Isis Multibeam Bathymetry
menu to get different views of your bathymetry data: View 2D and Scrolling 3D,
Waterfall Intensity, and Beam Snippet Intensity (the latter applies to Reson
sonars only). Snippet data can be logged. Also see
‘Beam Snippet Intensity’
for additional information on the subject.
10.4.1 View
2D
For a two-dimensional view of your multibeam’s image, choose View 2D. A
sample image is shown in Figure 10-7.

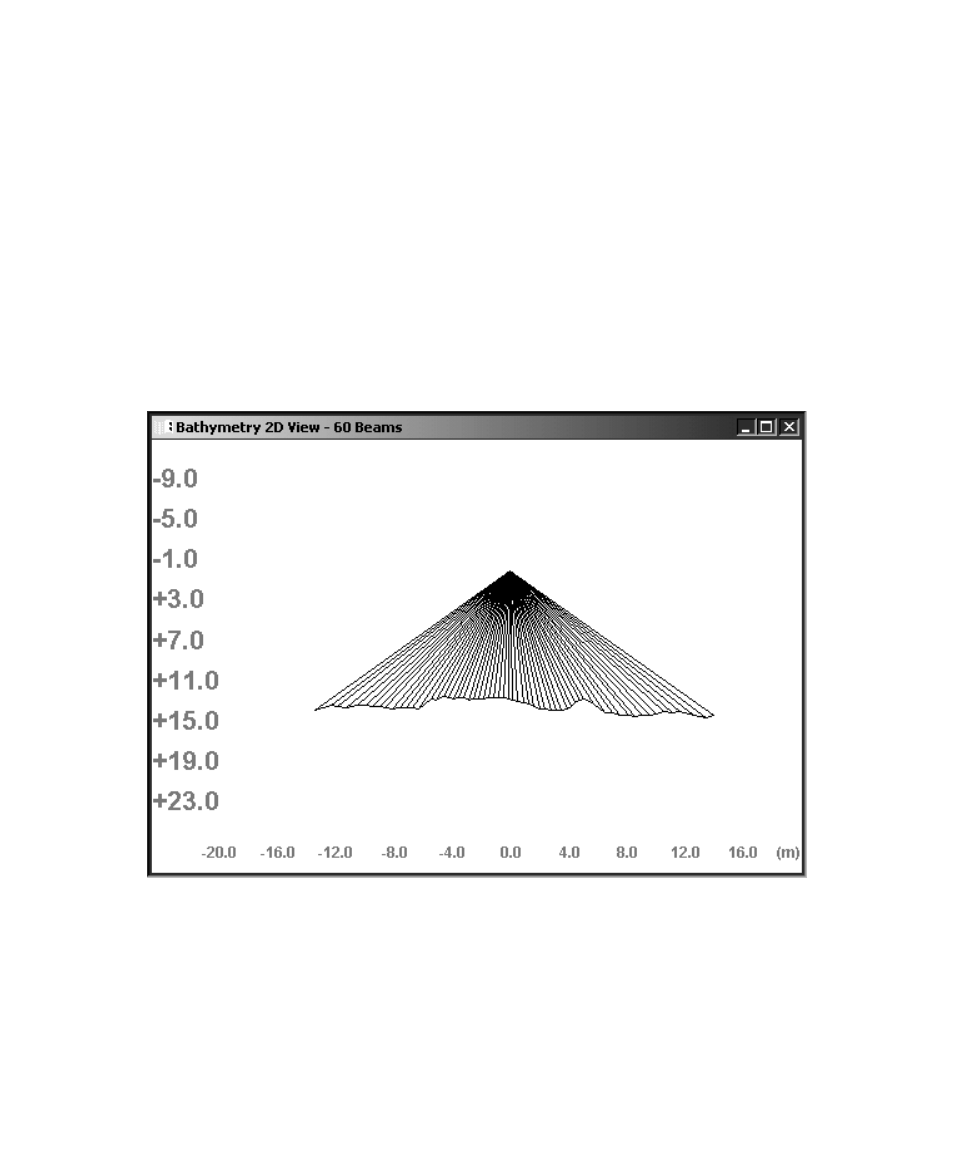

Figure 10-7: Sample two-dimensional view of a SeaBat’s sonar
