June 2004 Isis® Sonar User's Manual, Volume 1
260
10.6.8 Raw CTD
Isis can, at any time during a playback session, get the raw CTD data from
the file being played back if CTD data were present when the data was
recorded. This could be useful if you felt that some part of your CTD data
was questionable or worth re-examining. The Raw CTD graph in Isis could
help you make that determination. Choose Window→Graph→Computed
CTD and right-click in the graph area to set up this kind of sensor graphing.
A sample graph and its controlling dialog box is shown in Figure 10-23.

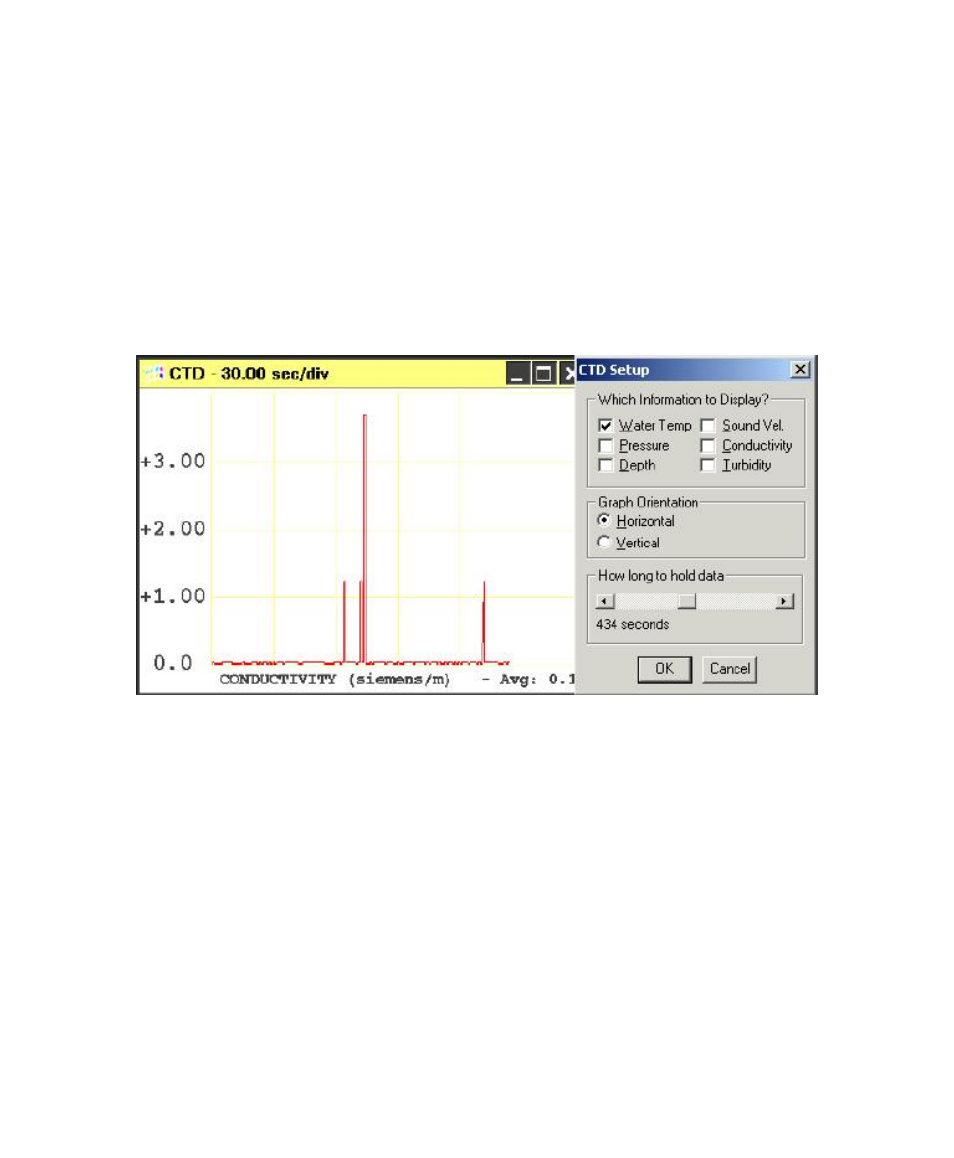

Figure 10-23: Sample raw CTD data (left) and its dialog box (right)
Chapter 10: Using the Window Menu
