June 2004 Isis® Sonar User's Manual, Volume 1
247
Show Geo Cursor: Used to identify the beam, swath, depth, and quality of a
specific beam. Values are displayed in upper-right corner of window.
Hint:
Make sure the hardware acceleration in the computer properties
window is set to low.
Number of depth dots to display: This is the percentage from the inner
beams outward to display in window.
The window is controlled by a combination of mouse and keyboard
movements, detailed in the extended display window (Figure 10-12). To
access this window click on More>> button in the display setting window
dialog.

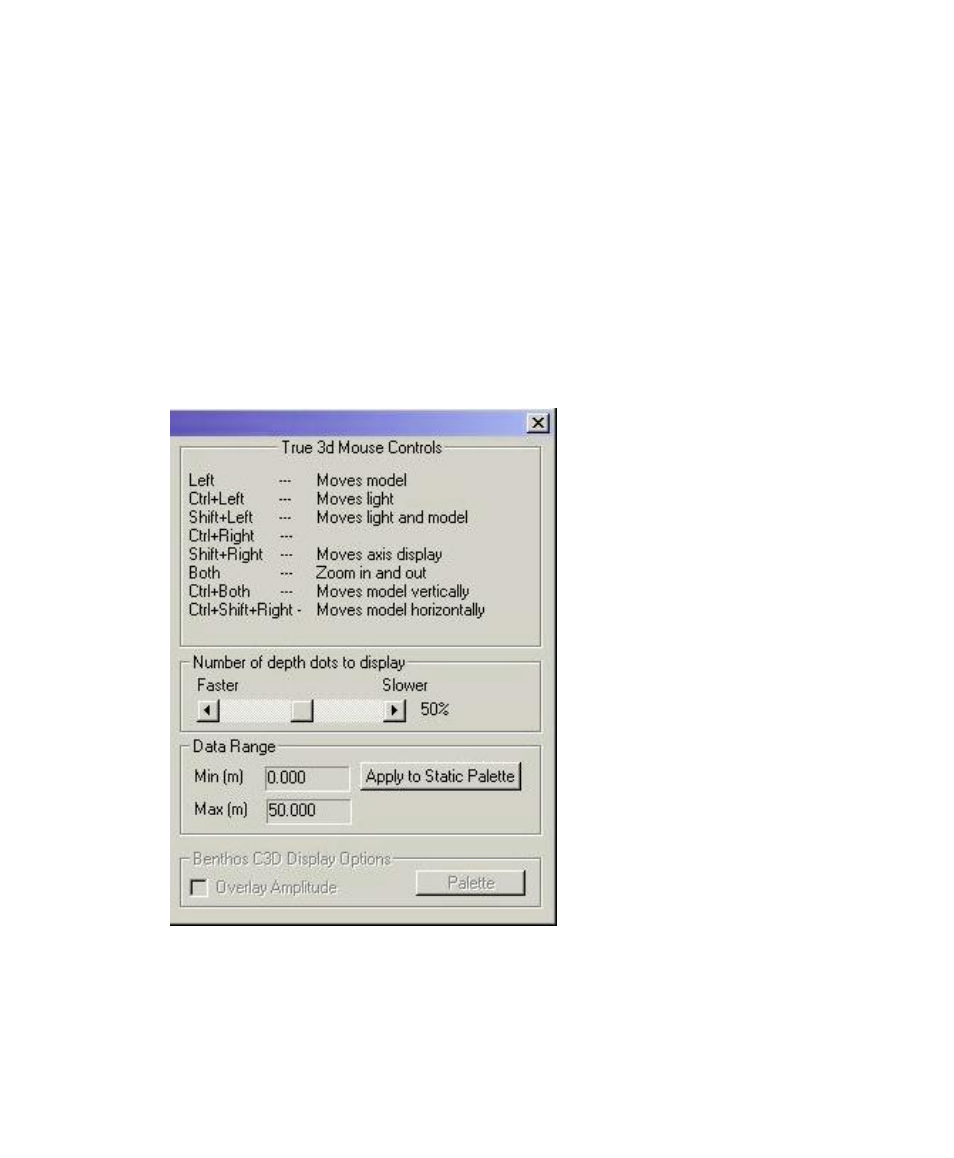

Figure 10-12: True 3d Mouse Controls
Chapter 10: Using the Window Menu
