10.6.5 Auxiliary
Besides the built-in data-collecting functions of Isis, Isis can accept up to six
auxiliary sensors to give you additional data-gathering capability. If you use
auxiliary sensors, you can graph their data. You must have used one or
more auxiliary sensors when you recorded your data imagery before an
auxiliary sensors graph can be generated from Isis. Choose
Window→Graph→Auxiliary and right-click in the graph area to set up this
kind of sensor graphing. A sample graph and its controlling dialog box is
shown in Figure 10-20.

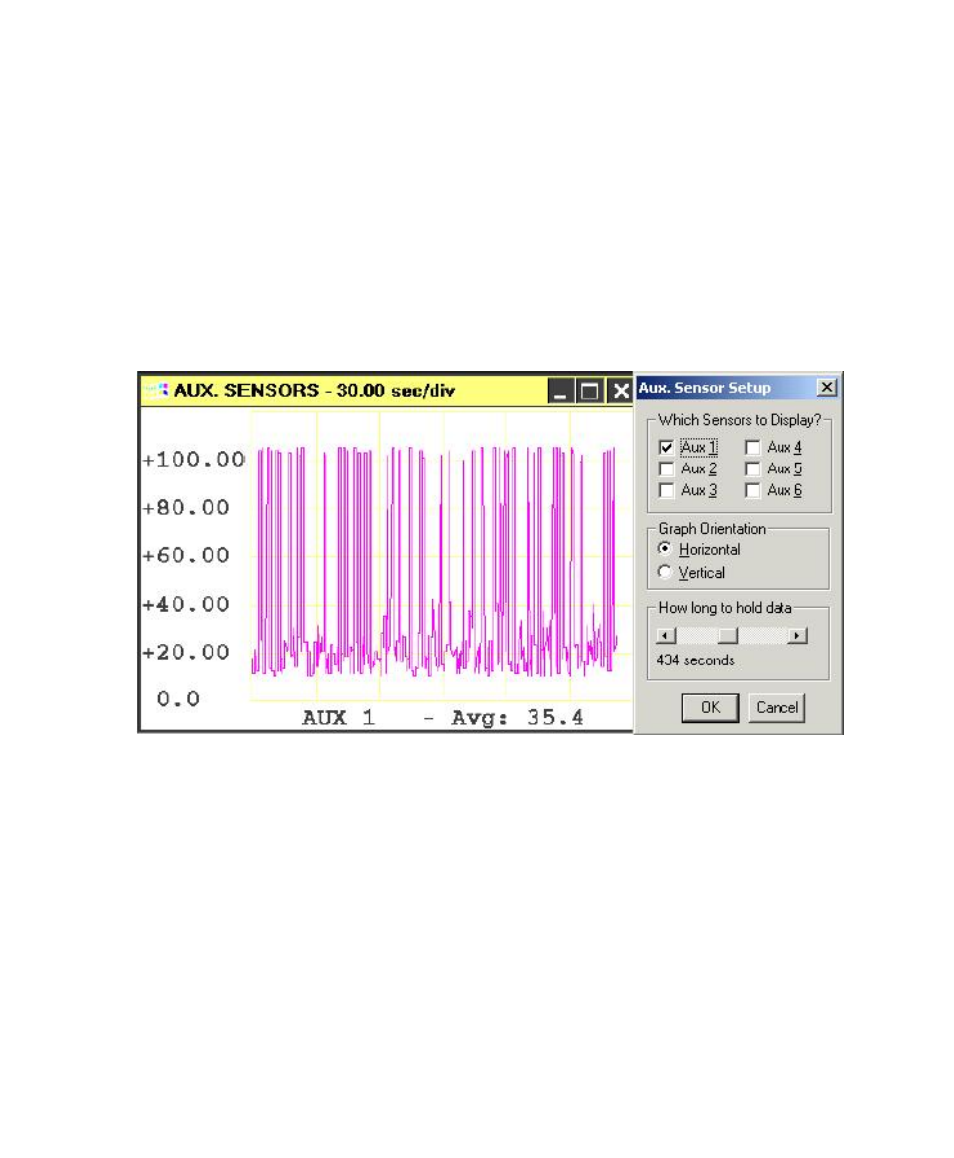

Figure 10-20: Auxiliary sensor sample data (left) and its dialog box
(right)
