June 2004 Isis® Sonar User's Manual, Volume 1
278

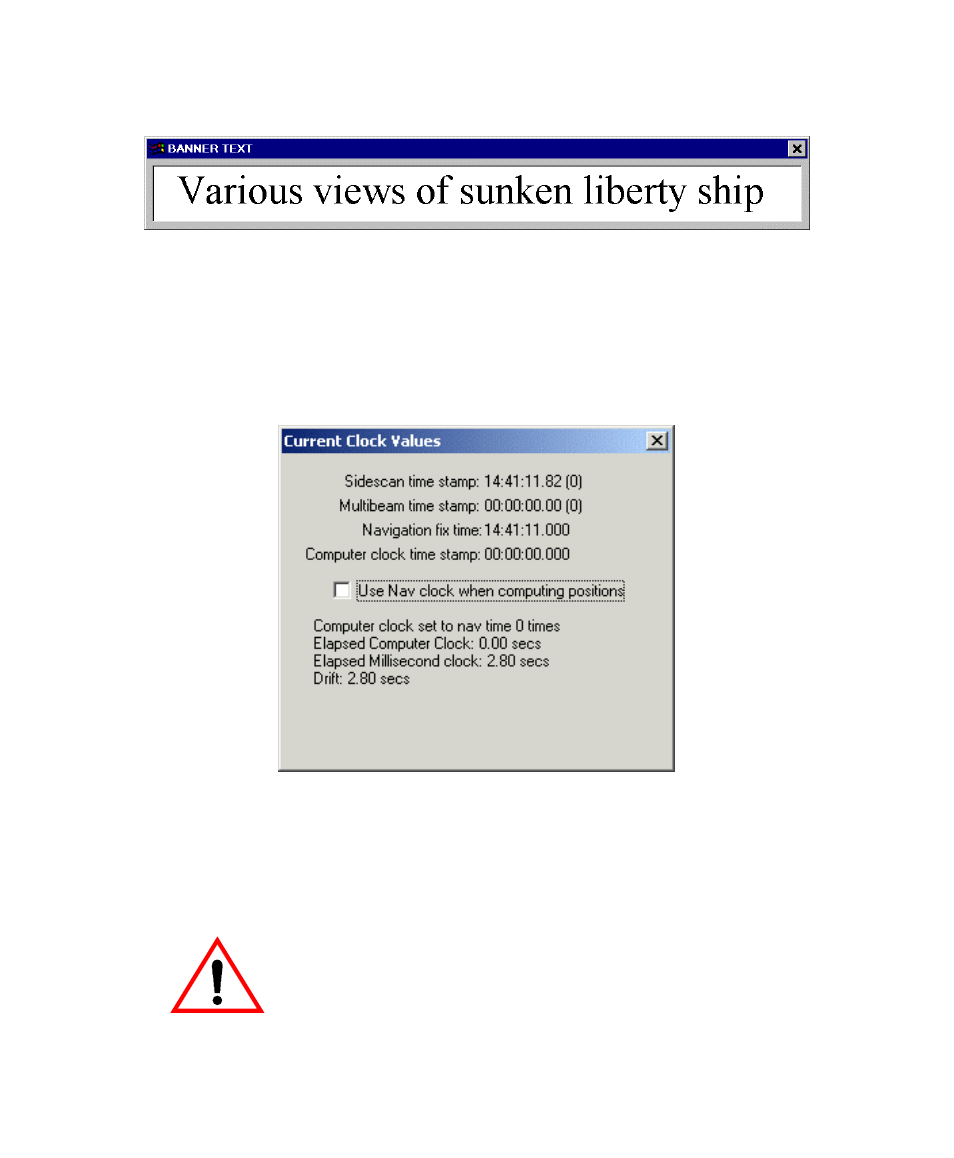

Figure 10-32: Sample Banner Text box for labeling data runs
10.7.7 Clock Times
This is a visual aid to help you confirm that times are properly synchronized
with your data. When you click Window→Status and Control→Clock
times , Isis displays an informational box labeled Current Clock Values. A
sample is shown in Figure 10-33.
Figure 10-33: Current Clock Values example
If you put a check mark in Use Nav clock when computing positions to
enable this feature, Isis will have to respect the timestamp put on each
navigation fix by an external computer. This is useful when using a long
baseline nav system.
If you are using two computers that have an independent (not
synchronized) time bases, enabling this feature can cause the
navigation position to be inaccurate!
Chapter 10: Using the Window Menu
