Figure 8-14: Trackpoint-enabled layback correction method

The two methods of computing the towfish position are mutually exclusive.
That is, enabling the Trackpoint option disables the Layback/Cable method
and vice versa. Both types of data may be recorded in the .XTF file. The

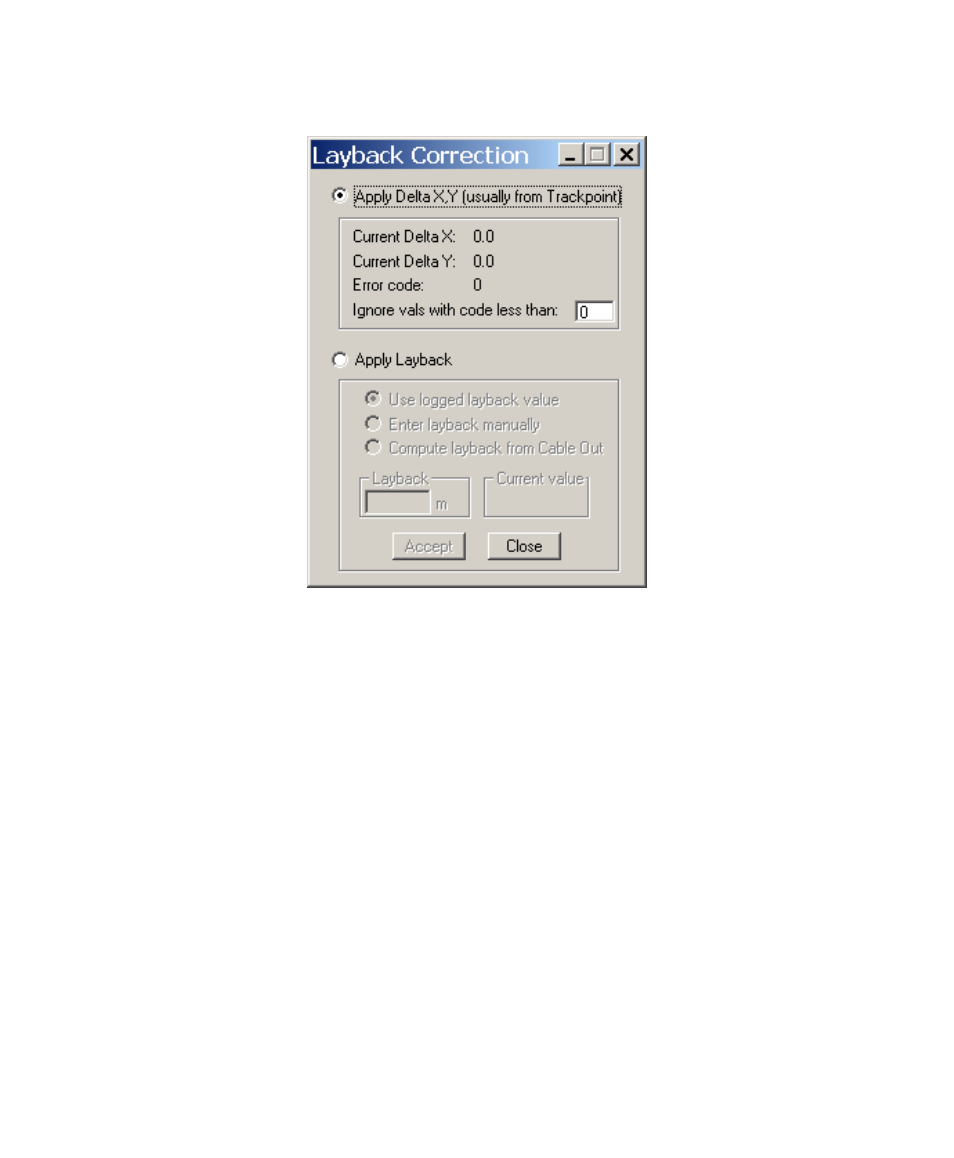

user chooses which method to apply in the Layback Correction dialog box.

Current Delta X: The X-offset (East or West) in meters from the

Trackpoint head to the towfish.

Current Delta Y: The Y-offset (North or South) in meters from the

Trackpoint head to the towfish.

Error code: The Trackpoint system transmits an error code for each

update. This value represents the confidences that the Trackpoint
system has in each update — the higher the value the better the
position.

Ignore vals with code less than: A zero here will allow all updates to be

used. Higher values (vals) will filter out poor positions. See the
Trackpoint manual for more information.
