June 2004 Isis® Sonar User's Manual, Volume1

3. Choose a playback option: Reset Drive (Load Tape), Play, Rewind to

Start, Rewind 1 File, or Advance 1 File.

4. If you wish to play back the last file on the tape, choose Advance to End

then Rewind 1 File. Table 3-1 explains the options.

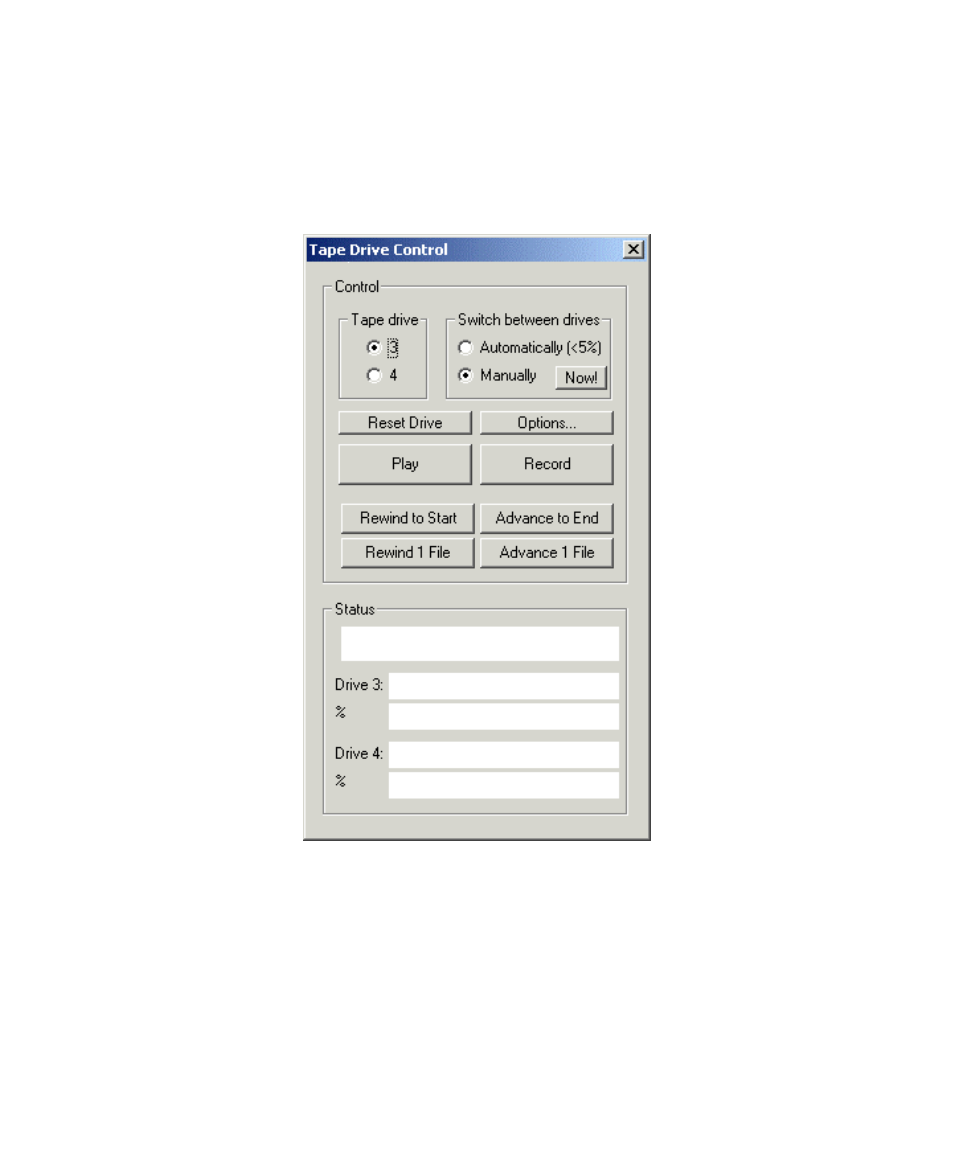

Figure 3-7. Tape Drive Control dialog box

5. Choose

Play to begin Playback

Isis reads the tape, displays the imagery on your screen, and reports
Reading from tape [#] (i.e., tape drive 3 or 4) in the Status portion of the
Tape Drive Control dialog box. While this is happening, Isis spools the

Chapter 3: Using the File Menu
