MAIN MENU Select the function button corresponding to MAIN MENU to return to the Main Menu.

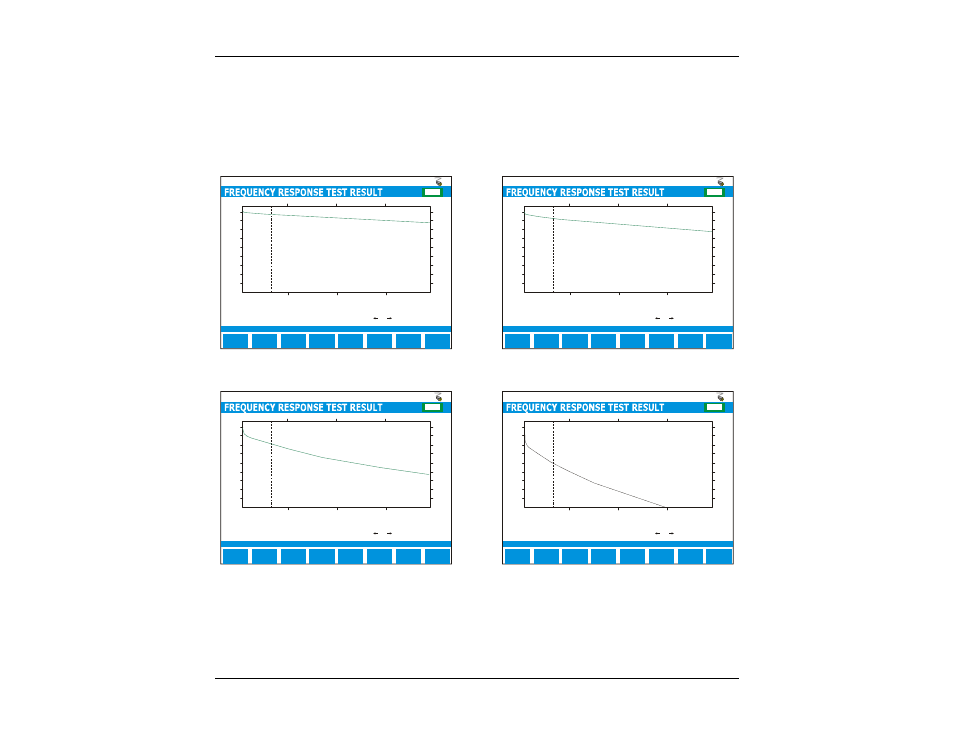

8.1.3 Examples of Frequency Response Test Results
MAIN
MENU
E F CHG
Single end frequency response test complete. (for 1000 ft)
dB
0.0
20.0
40.0
60.0
80.0
dB
Attenuation = 5.24 dB
Cursor Position = 301.875 kHz
SAVE/
UPLOAD SHOW
REF TEST
SETUP
0.0
20.0
40.0
60.0
80.0
ZOOM IN
HORIZ
Press or to move cursor
ZOOM IN
VERT
4 555 1106 2208 1657 kHz
F IGURE 8.1.3A – 1000 FT / 300 M
MAIN
MENU
E F CHG
Single end frequency response test complete. (for 4000 ft)
dB
0.0
20.0
40.0
60.0
80.0
dB
Attenuation = 17.11 dB
Cursor Position = 301.875 kHz
SAVE/
UPLOAD SHOW
REF TEST
SETUP
0.0
20.0
40.0
60.0
80.0
ZOOM IN
HORIZ
Press or to move cursor
ZOOM IN
VERT
4 555 1106 2208 1657 kHz
F IGURE 8.1.3C – 4000 FT / 1200 M
MAIN
MENU
E F CHG
Single end frequency response test complete. (for 2000 ft)
dB
0.0
20.0
40.0
60.0
80.0
dB
Attenuation = 8.78 dB
Cursor Position = 301.875 kHz
SAVE/
UPLOAD SHOW
REF TEST
SETUP
0.0
20.0
40.0
60.0
80.0
ZOOM IN
HORIZ
Press or to move cursor
ZOOM IN
VERT
4 555 1106 2208 1657 kHz
F IGURE 8.1.3B – 2000 FT / 600 M
MAIN
MENU
E F CHG
Single end frequency response test complete. (for 12000 ft)
dB
0.0
20.0
40.0
60.0
80.0
dB
Attenuation = 41.51 dB
Cursor Position = 301.875 kHz
SAVE/
UPLOAD SHOW
REF TEST
SETUP
0.0
20.0
40.0
60.0
80.0
ZOOM IN
HORIZ
Press or to move cursor
ZOOM IN
VERT
4 555 1106 2208 1657 kHz
F IGURE 8.1.3D – 12000 FT / 3650 M
