J.5 controlling the cableshark with visi-shark – EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 303
CableSHARK P3 User Guide
291

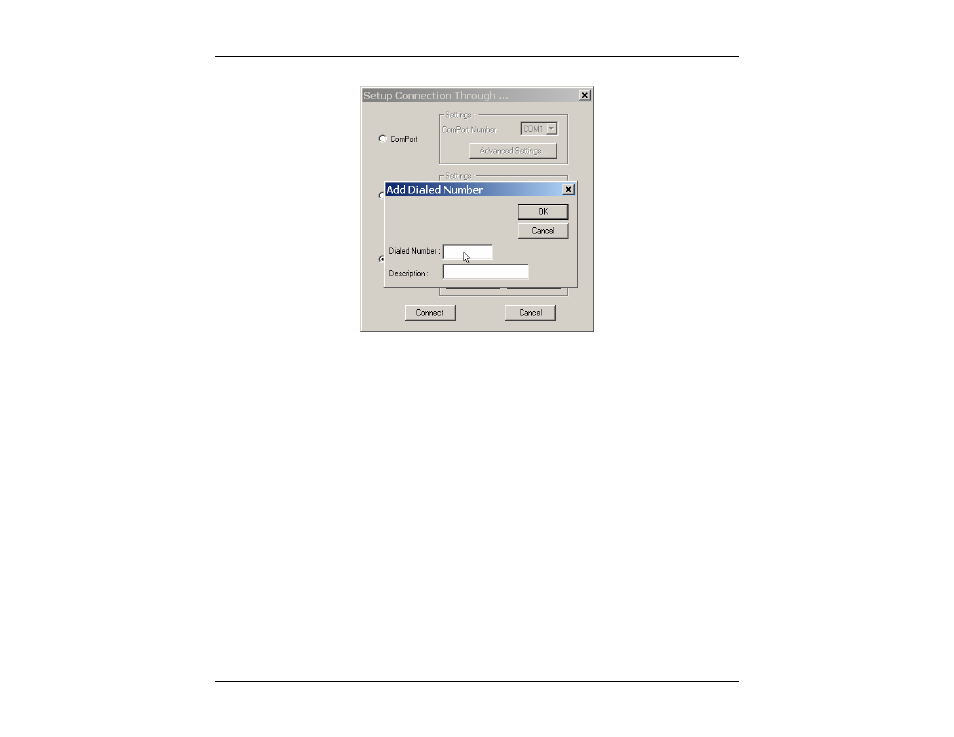

F
IGURE
J.4.3C
-
A
DDING A
N
EW
D
IALED
N
UMBER
To remove a pre-programmed Dialed Number, select the Number by clicking the button that has a downward
pointing arrow on it that is to the right of the “Dialed Number” or “Description” field. Select the Number to be
removed from the pull-down list that appears. Click the “Remove No.” button.
J.5 Controlling the CableSHARK with Visi-SHARK
Once the Visi-SHARK software has established communication with an CableSHARK, a window is displayed
containing the simulated Main Menu of the CableSHARK, along with its familiar function keys and
alphanumeric keypad.
