EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 251
CableSHARK P3 User Guide
239
Select K-test from the Main Menu pop-up screen and press the “RUN STOP” button to execute the test. The
following screen is displayed:

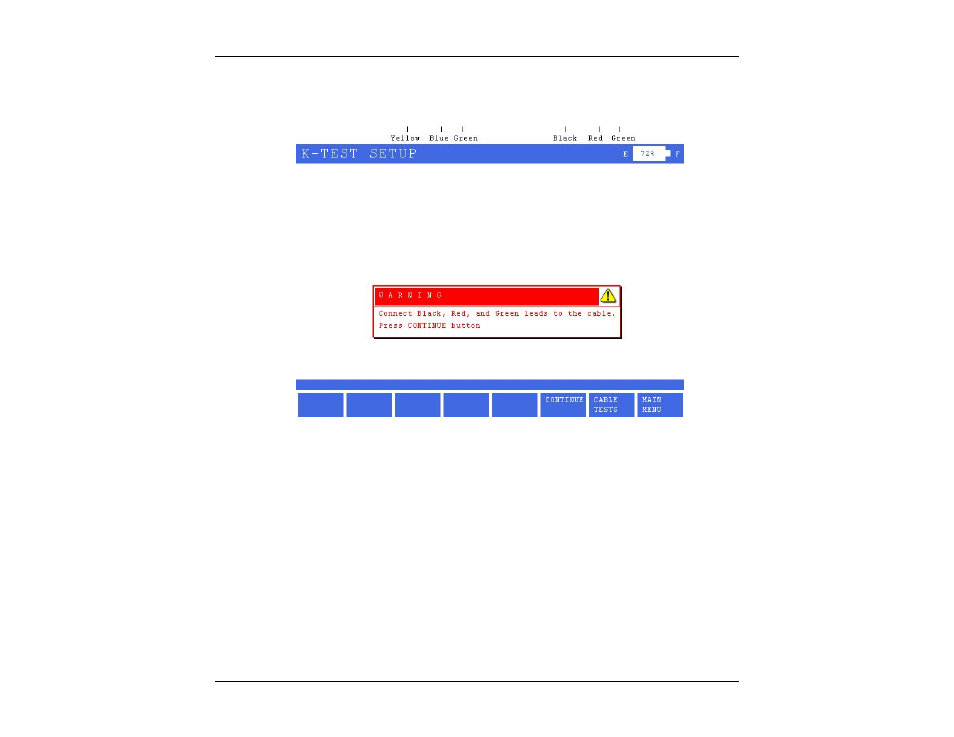

F
IGURE
16.3B–
K-T
EST
S
ETUP
S
CREEN
Connect Tip to Aux. Tip and Ring to Aux Ring. Connect Tip and ring to the faulted pair, and Ground to the
reference wire. Disconnect the far end strap then press the “F6” or “RUN/STOP” button to execute the test.
The following screen may be displayed:
