EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 75
CableSHARK P3 User Guide
63

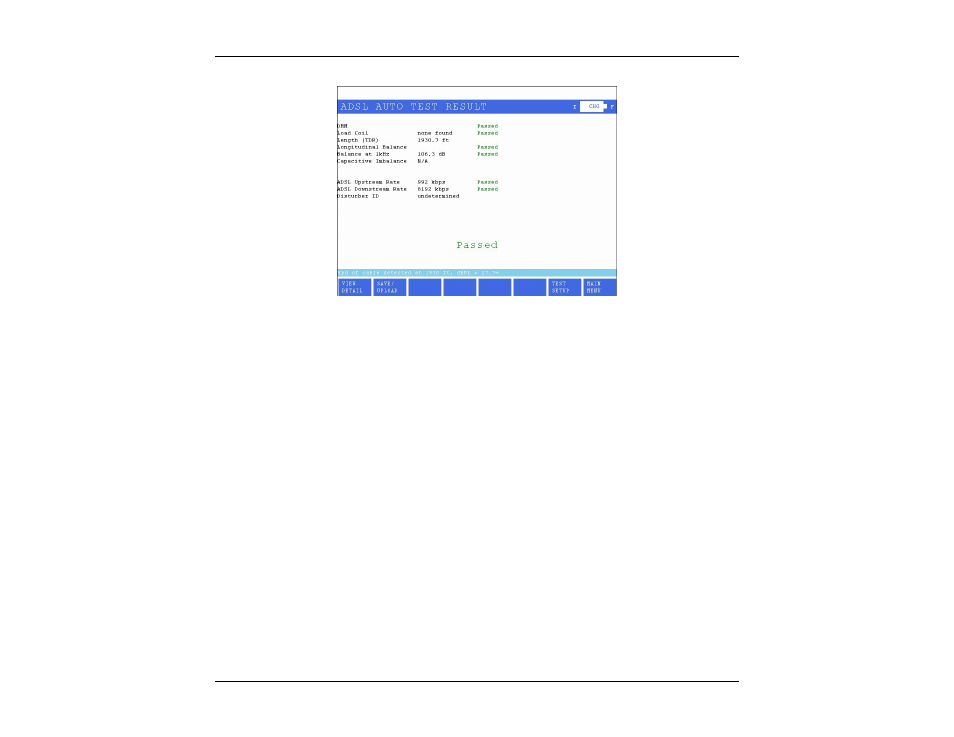

Figure 7.14A – ADSL Auto Test Results
7.15 SHDSL Auto Test
Note: This is a Single-ended test.
The SHDSL Auto test quickly evaluates a cable to see if it is acceptable for SHDSL based on pre-defined
PASS / FAIL criteria. The SHDSL auto test will perform a DMM test, Longitudinal Balance, Load Coil test,
Capacitive Imbalance, SHDSL bit rate test, and a TDR test.
1. From the Main Menu, select SHDSL AUTO (function button F3). This test will take place automatically.
