CableSHARK P3 User Guide
159
8.11.1.2 SHDSL Auto Test Setup
From the Auto Test Setup screen, pressing the F6 button will activate the SHDSL Auto Test Setup screen.
The SHDSL Auto Test setup screen allows you to configure the PASS/FAIL criteria for the SHDSL Auto
Test.
MAIN
MENU
E F CHG
VF
SETUP EDIT/
SELECT
DEFAULT
VALUES
SHDSL Evaluation:
SHDSL Noise Margin dB:
Min. SHDSL Rate (kbps):
VOP:
Capacitance nF/mi T-R:
Capacitance nF/mi to GND:
Max. AC Voltage T-R (V):
Min. Res. T-R (Mohm):
Max. AC Voltage T-G (V):
Max. AC Voltage R-G (V):
Max. DC Voltage T-R (V):
Max.DC Voltage to GND(V):
Min. Res. T-G (Mohm):
Min. Res. R-G (Mohm):
Max. Cap. Imbalance (%):
Min. VF Long.Balance (dB):
0
AUTO
500.0
0.660
83.0
125.0
10.0
25.0
25.0
50.0
50.0
2.5
2.5
2.5
5.0
50.0
ITU-T Annex A
SELECT
NEXT
ADSL
SETUP

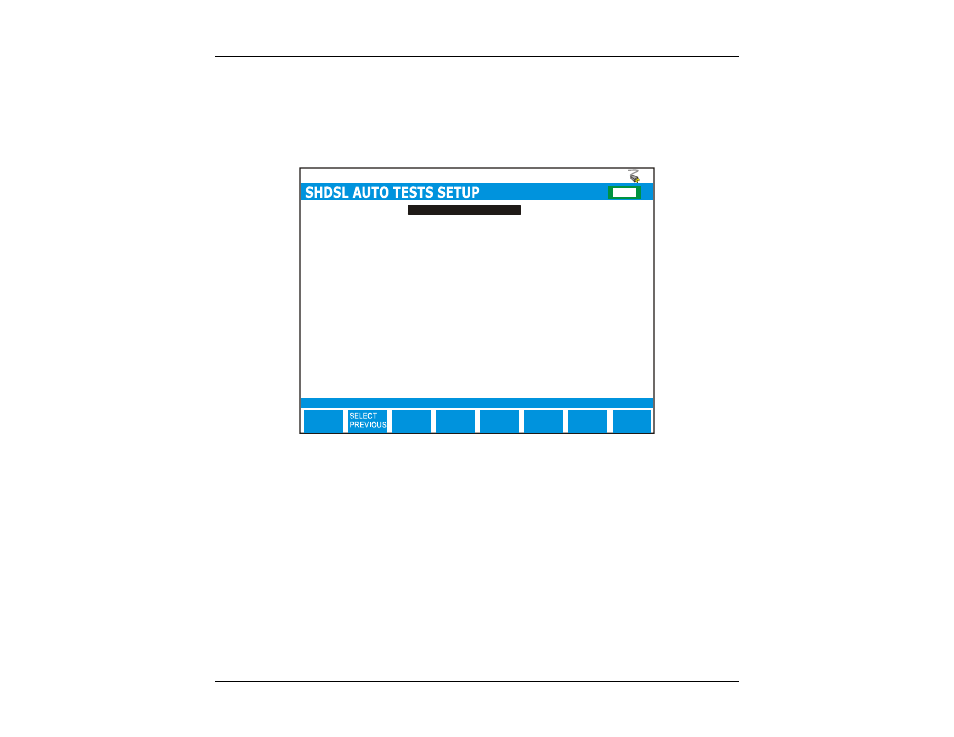

F IGURE 8.11.1.2A – SHDSL AUTO TEST S ETUP
The options at the bottom of the SHDSL AUTO TESTS SETUP screen represent the following:
EDIT/SELECT Pressing the function button corresponding to EDIT/SELECT invokes a menu
wherein a desired parameter can be highlighted by using the Cursor Pad
UP/DOWN arrow buttons and/or the function buttons corresponding to PAGE
UP and PAGE DOWN (should they exist). Press the function button
corresponding ENTER to select the highlighted parameter.
SELECT PREVIOUS Pressing the function button corresponding to SELECT PREVIOUS scrolls
backward through each of the parameters that are available for the highlighted
option.
