EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 167
CableSHARK P3 User Guide
155

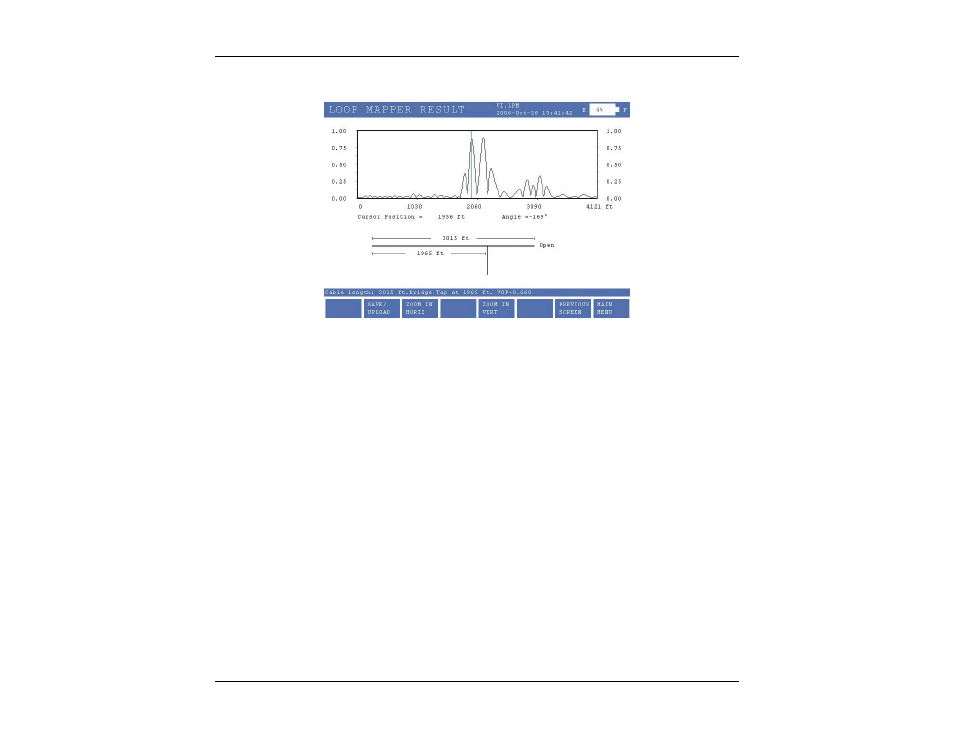

F
IGURE
8.10.2.1C
-
R
UNNING A
L
OOPMAPPER
T
EST WITH A
C
ABLE AND
B
RIDGE
T
AP
B
RANCH
Note: When using the LoopMapper test, be sure to use the CableSHARK’s zoom function to amplify the
result. Often, the reflected pulse is difficult to see, so by using the vertical/horizontal zoom function, the faults
can be seen easily.
