CableSHARK P3 User Guide
245

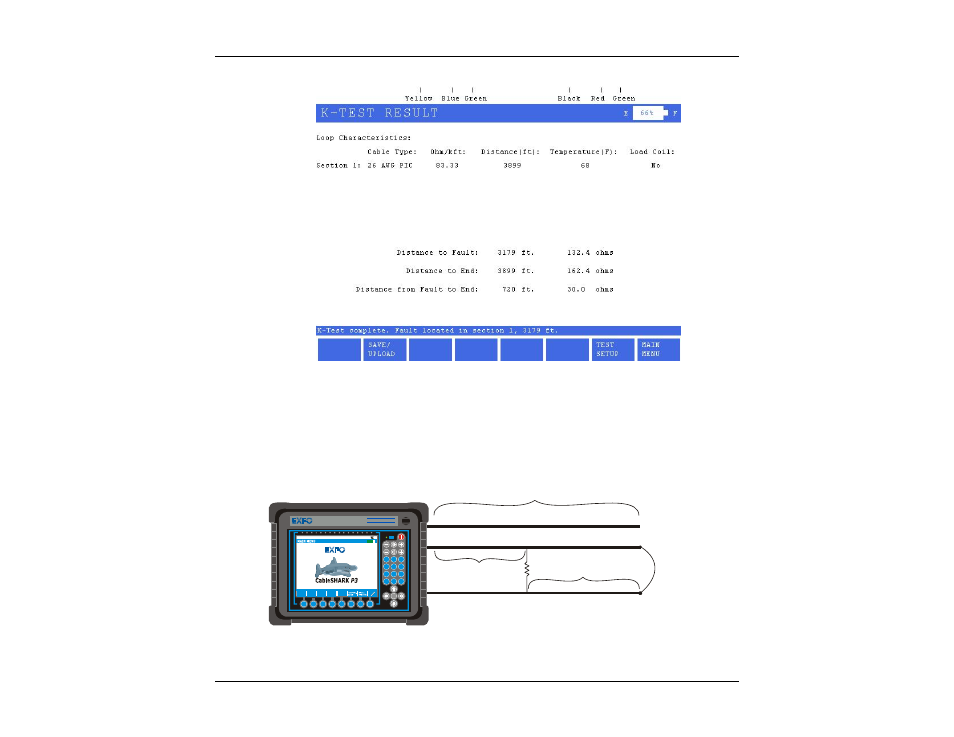

F IGURE 16.3.3A – K-T EST R ESULTS
There are three parts of the circuit under test that are presented to the user. These parts are based on the
location of the CableSHARK, the location of the fault and the location of the strap. The user will be given the
following information: Distance to Fault, Distance to End, and Distance from End to Fault. The following
image shows this in more detail.
Strap Distance to
Fault
Distance from
End to Fault
Distance to
End
+ -
F1 F2 F3 F4 F5 F6 F7 F8
1 2 A B C 3 D E F
4 G H I 5 J K L 6 M N O
7 P R S 8 T U V 9 W X Y
0 Q Z * #
RUN STOP
E F
CABLE
TESTS 13:16:20
Copyright Consultronics Limited 2000 - 2006 Software Version 3.86
