EXFO CableSHARK P3 VF/DSL Cable Qualifier - Manual (Page 237)

CableSHARK P3 User Guide
225
SEND TONE
600 OHMS
NUMERICAL
EDIT /
SELECT MAIN
MENU
Test Type :
Term Impedance:
Receiver Mode:
E F CHG
RECEIVE TONE

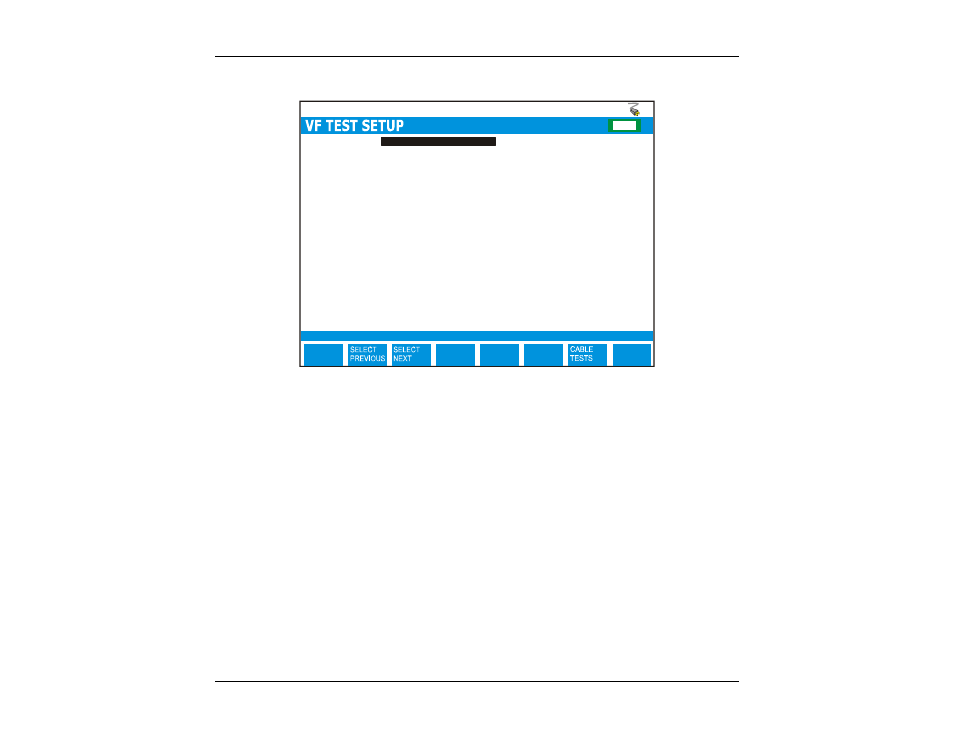

F IGURE 15.2.1A - S ETTING U P RX T ONE N UMERICAL TEST
The VF TEST menu has the following configuration option.
TEST TYPE: Select RECEIVE TONE
TERM IMP: 600 ohms (or 100, 150 ohms if your unit does not have 600 ohms installed).
Receiver Mode: Allows user to select from NUMERICAL, GRAPHICAL, and RX 3 TONE SLOPE.
With NUMERICAL selected, press the RUN/STOP key to start the test. The following screen will appear.
Press the FREEZE button to stop the test. Results can be saved by pressing the SAVE/UPLOAD button.
