EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 256
VF / DSL Cable Qualifier
244
16.3.2.1 Setup the K_test Test for Multi-Section Testing

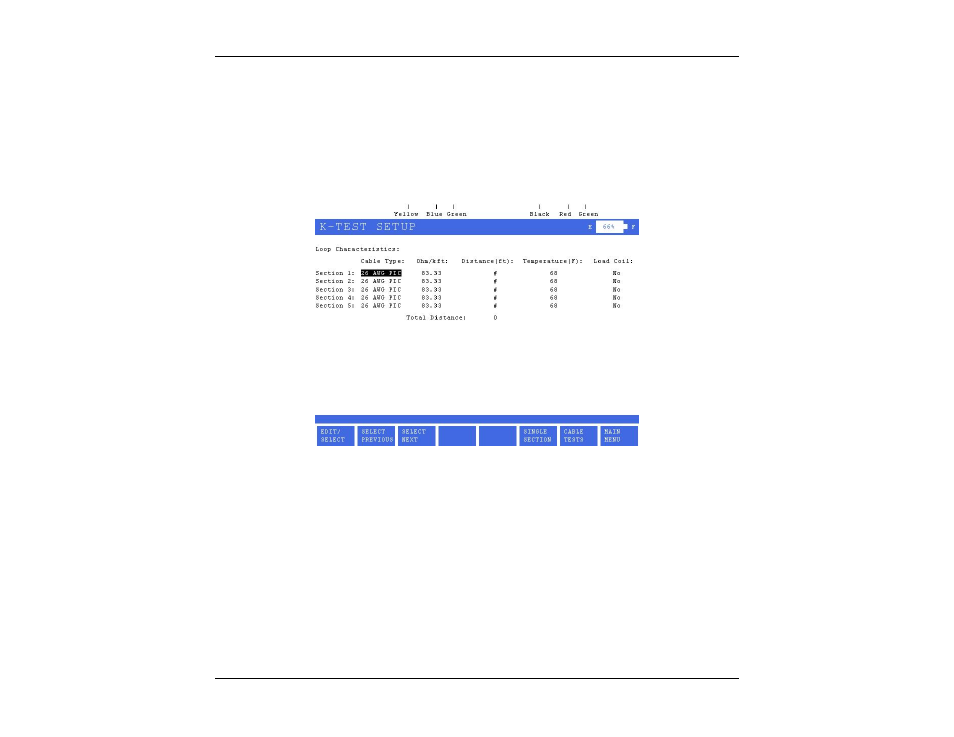

Users can enter loop characteristics for multi-section loops into the CableSHARK by pressing the MULTI-
SECTION key. Users can enter characteristics of up to 5 sections into the CableSHARK. Typically a section
is a different gauge of wire.
F
IGURE
16.3.2.1A
–
K-T
EST
C
ABLE
C
HARACTERISTICS
S
ETUP
S
CREEN FOR
M
ULTI
-
SECTION
T
ESTING
16.3.3 Running a Test
Once the test is set up, press the RUN/STOP key located on the front panel of the CableSHARK. A screen
similar to the screen shot below will appear.
The user is presented with the loop characteristics as entered during the setup phase as well as results in
distance and resistance for the location of the fault.
