CableSHARK P3 User Guide
153

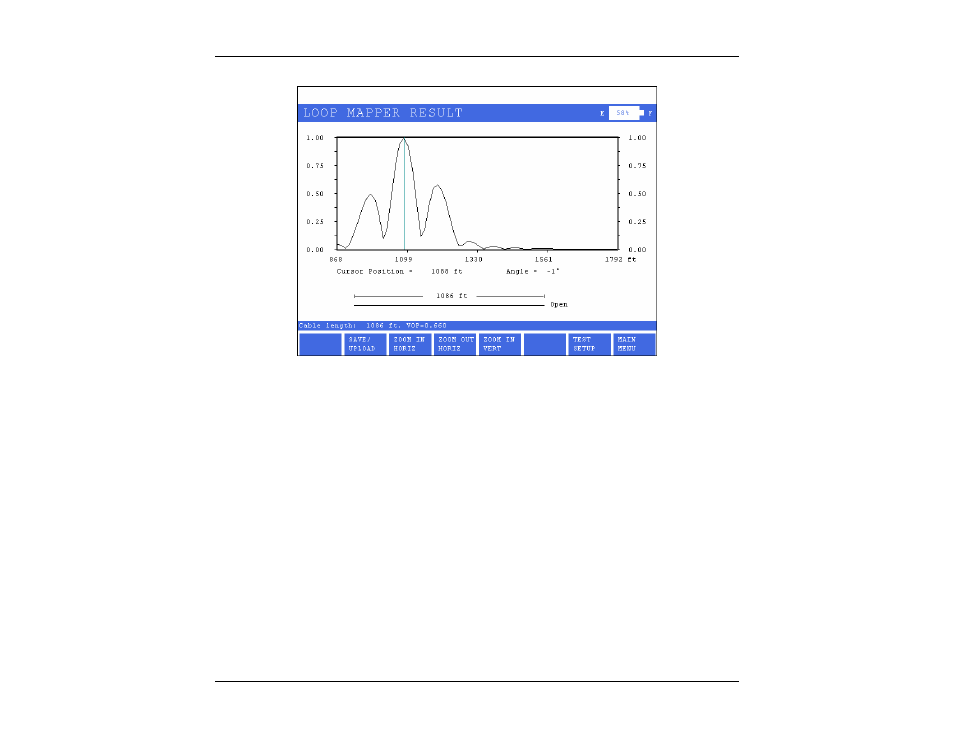

F IGURE 8.10.2.1A - R UNNING A L OOP M APPER T EST WITH THE C ABLE E ND O PEN
Figure 8.10.2.1B shows a LoopMapper test result on the same cable of Figure 8.10.2.1A with the cable end
shorted. Even though both images look similar, please note that now the angle at the reflected point is 180
°.
The short condition is also automatically detected and presented by the CableSHARK at the bottom of the
screen
