J.6 menu bar and toolbar functions – EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 304
VF / DSL Cable Qualifier
292
F
IGURE
J.5A
-
A
C
ABLE
SHARK
IS
C
ONNECTED
V
IA
E
THERNET

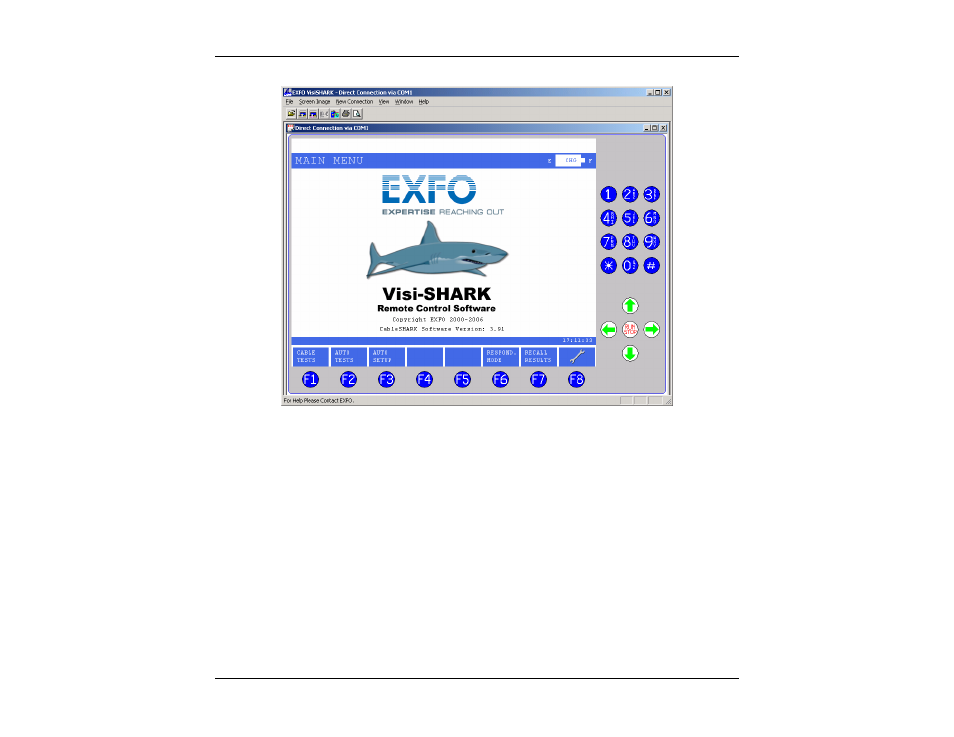

By clicking the on-screen buttons with the mouse, the user can control the remotely connected
CableSHARK. The CableSHARK responds in the same manner as if the user was actually pressing the
buttons on the CableSHARK unit. The simulated on-screen CableSHARK display changes accordingly, to
reflect what the remotely connected CableSHARK is displaying.
Similarly, the Visi-SHARK simulated display will change when the actual buttons on the CableSHARK unit
are pressed.
J.6 Menu Bar and Toolbar Functions
The Menu Bar resides near the upper left of the Visi-SHARK screen. All of the Visi-SHARK functions can be
controlled from the menu bar. Clicking each of the Menu Bar items invokes a pull-down menu containing
one or more functions.
