CableSHARK P3 User Guide
227
SEND TONE
600 OHMS
GRAPHICAL
300 Hz to 4 kHz
EDIT /
SELECT MAIN
MENU
Test Type :
Term Impedance:
Receiver Mode:
Graph Scale:
E F CHG
RECEIVE TONE

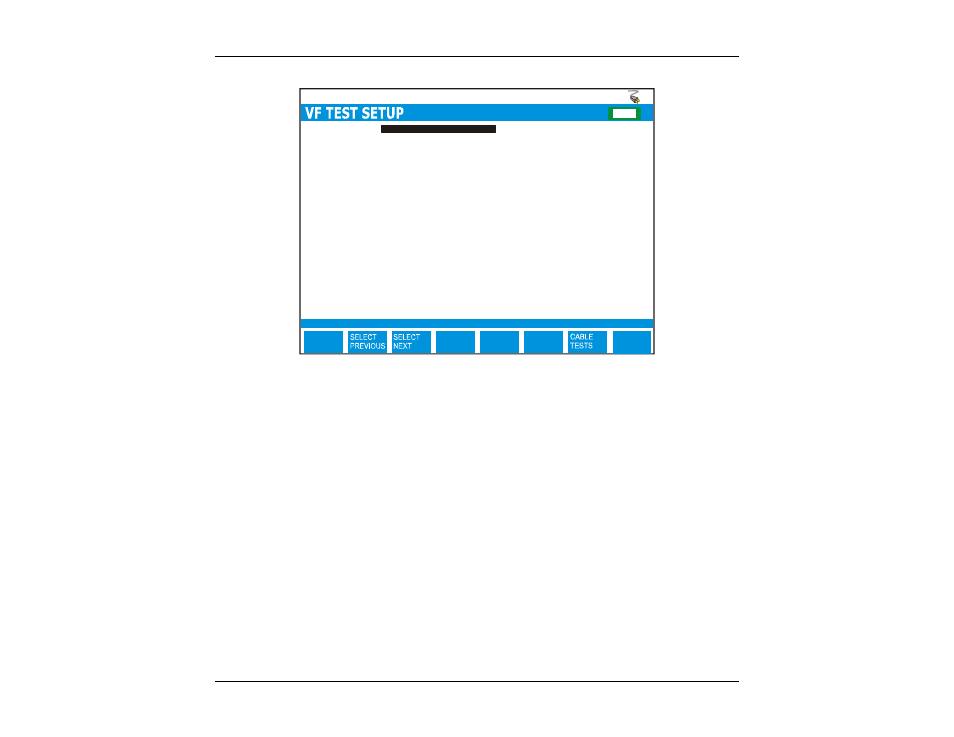

F IGURE 15.2.2A - S ETTING U P RX T ONE G RAPHICAL TEST
The VF TEST menu has the following configuration option.
TEST TYPE: Select RECEIVE TONE
TERM IMP: 600 ohms (or 100, 150 ohms if your unit does not have 600 ohms installed).
Receiver Mode: Allows user to select from NUMERICAL, GRAPHICAL, and RX 3 TONE SLOPE.
Graph Scale: Allows user to select from 300 Hz to 4 kHz or 300 Hz to 20 kHz.
With GRAPHICAL selected, press the RUN/STOP key to start the test. The following screen will appear.
