CableSHARK P3 User Guide
15
Section 4 Physical Features and Power Supply
4.1 Physical Features of the CableSHARK
4.1.1 The Front Panel
The illustration below shows the front panel features of the CableSHARK. These features are described
following the illustration.
+ -
F1
F2
F3
F4
F5
F6
F7
F8
1
2
A
B
C
3
D
E
F
4
G
H
I
5
J
K
L
6
M
N
O
7
P
R
S
8
T
U
V
9
W
X
Y
0
Q
Z
*
#
RUN
S TOP
E
F
MAIN MENU
CableSHARK P3
CABL E
TESTS
1 3:16 :20
2
3
4
5
6
7
8
9
10
1
Copyrigh t Con su ltronic s Lim ited 20 00 - 200 6
So ftware Version 3.86
AUTO
TESTS
RESPOND.
MODE
RECA LL
RESULTS
AUTO
SETUP
CableSHARK P3
VF/DSL Cable Qualifier

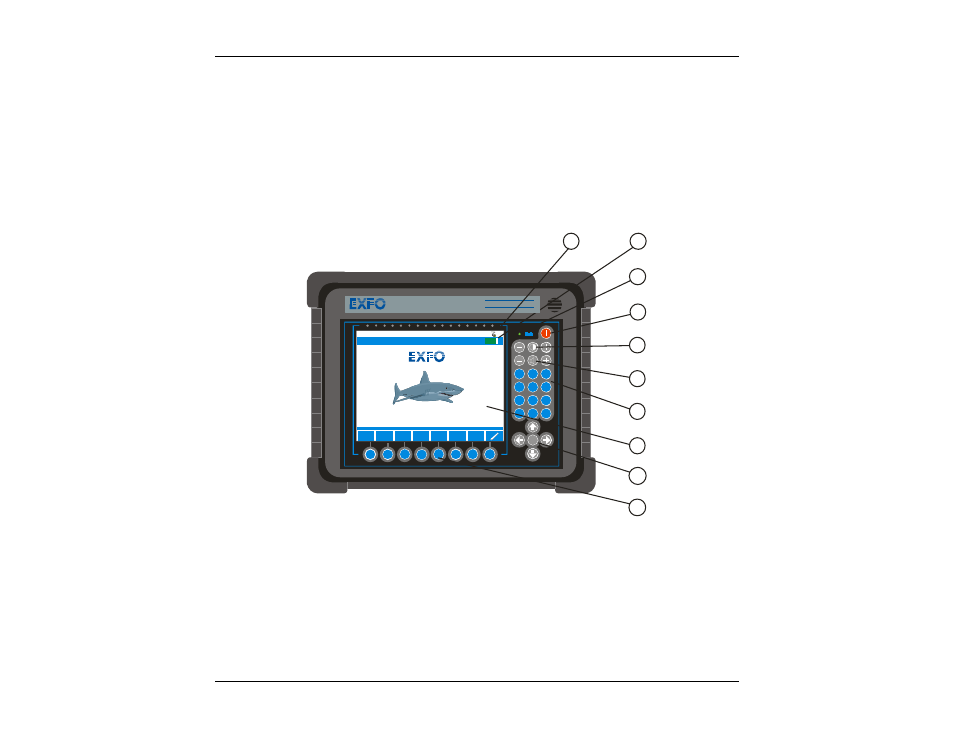

Figure 4.1.1A - CableSHARK Front Panel
1.
AC Mains Plug Symbol
This symbol indicates if the CableSHARK is receiving power from an AC mains supply. There will
be no symbol if power is disconnected from the unit.
2.
Battery Status Indicator
Indicates status of battery. Battery Gas Gauge will move between E and F. E represents EMPTY
(battery needs recharging) and F represents FULL (battery is fully recharged). A percentage will
appear indicating the amount of battery capacity left.
