CableSHARK P3 User Guide
17
4.1.2 The Rear Panel

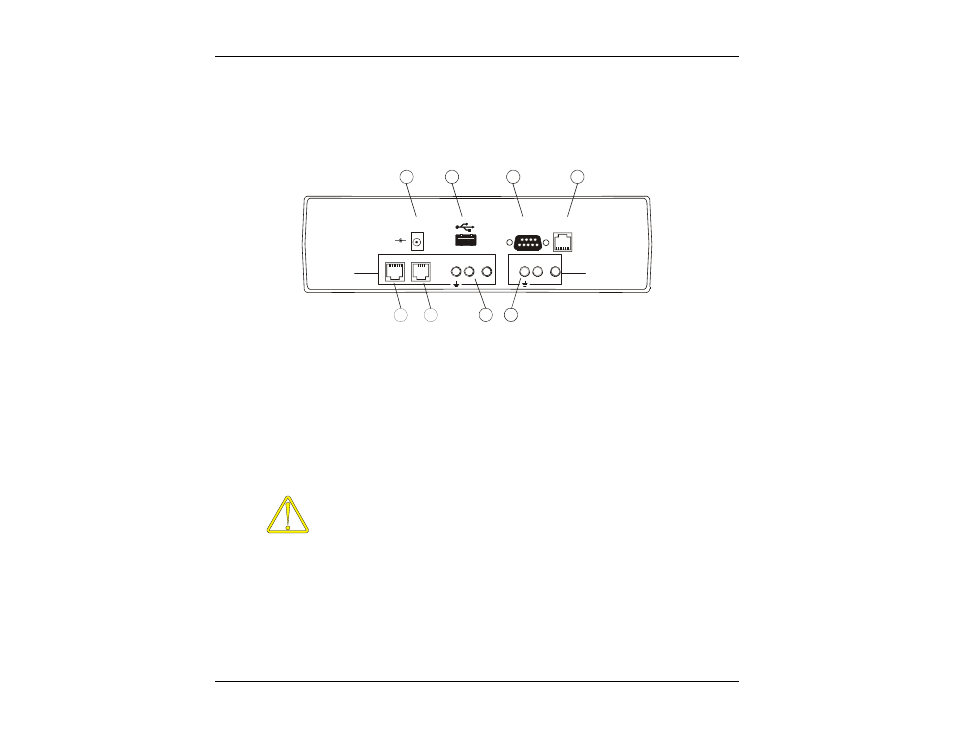

The illustration below shows the back panel features of the latest CableSHARK. Each item is described
following the illustration.
1 2 3
5 6 7 8
18 V
DC IN
Rx (AUX.)
RING TIP RJ11 RJ45 RING TIP 2 WIRE
LINE
Tx / Rx
- +
ETHERNET RS232/V.24
SERIAL
GND GND
4
Figure 4.1.2A – The CableSHARK’s Rear Panel
1.
Power Connector for AC Adapter
Provides connection of the CableSHARK to the power mains via the AC adapter provided with the
unit. The internal battery is automatically charged once the instrument is plugged in, even when
the instrument is switched off.
2.
Universal Serial Bus (USB) Series A Receptacle
This USB connection provides the user with the ability to save results to a USB Memory. Users
can save results to the optional 256 MB USB Memory available from EXFO. Users can also
upgrade the CableSHARK via the USB port using the USB Memory.
The CableSHARK works with the following other USB Memory devices:
• Universal Smart Drive USB1.1 (64 Meg)
• Universal Smart Drive USB1.1 (32 Meg)
• Sandisk cruzer mini USB2.0 (32 Meg)
• USB 007 USB1.1 (32 Meg)
• Shikatronics Flash Drive USB2.0 (32 Meg)
• Kingston USB1.1 (32 Meg)
• Intelligent Stick USB1.1 (32 Meg)
