EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 170
VF / DSL Cable Qualifier
158
F
IGURE
8.11.1.1C
–

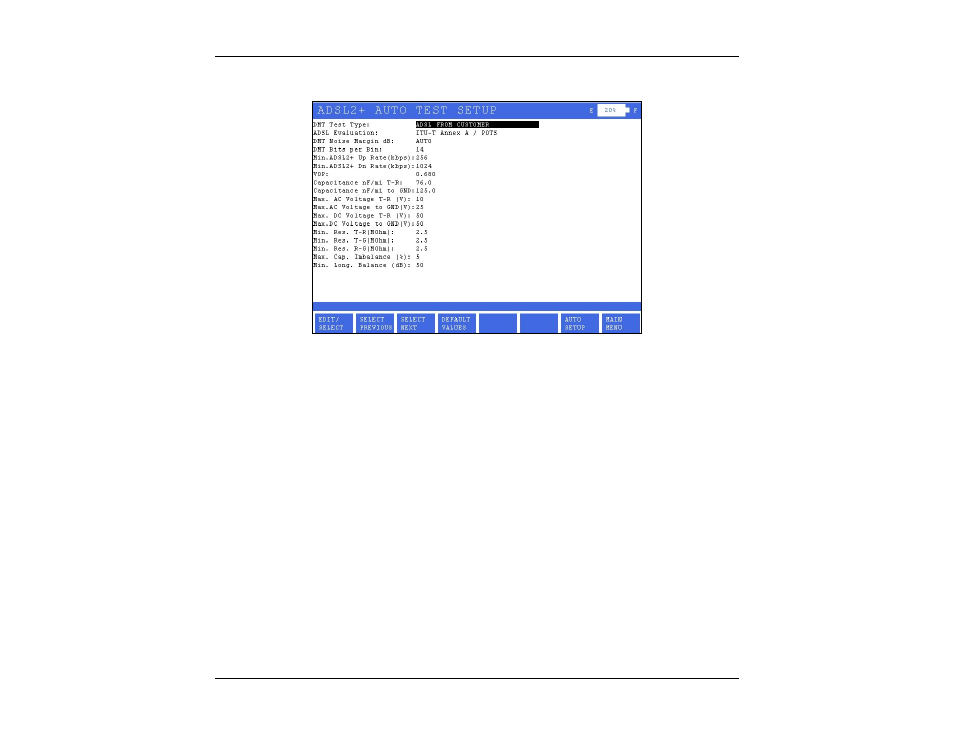

ADSL2+
AUTO
TEST
S
ETUP
The options at the bottom of the ADSL AUTO TESTS SETUP screen represent the following:
EDIT/SELECT
Pressing the function button corresponding to EDIT/SELECT invokes a menu
wherein a desired parameter can be highlighted by using the Cursor Pad
UP/DOWN arrow buttons and/or the function buttons corresponding to PAGE
UP and PAGE DOWN (should they exist). Press the function button
corresponding ENTER to select the highlighted parameter.
SELECT PREVIOUS
Pressing the function button corresponding to SELECT PREVIOUS scrolls
backward through each of the parameters that are available for the highlighted
option.
SELECT NEXT
Pressing the function button corresponding to SELECT NEXT scrolls forward
through each of the parameters that are available for the highlighted option.
DEFAULT VALUES
Sets the ADSL AUTO TEST parameters to their factory defaults.
MAIN MENU
Select the function button corresponding to MAIN MENU to return to the Main
Menu.
