EXFO CableSHARK P3 VF/DSL Cable Qualifier User Manual
Page 240
VF / DSL Cable Qualifier
228
F
IGURE
15.2.2B
-
R
UNNING THE
RX
T
ONE
G
RAPHICAL TEST

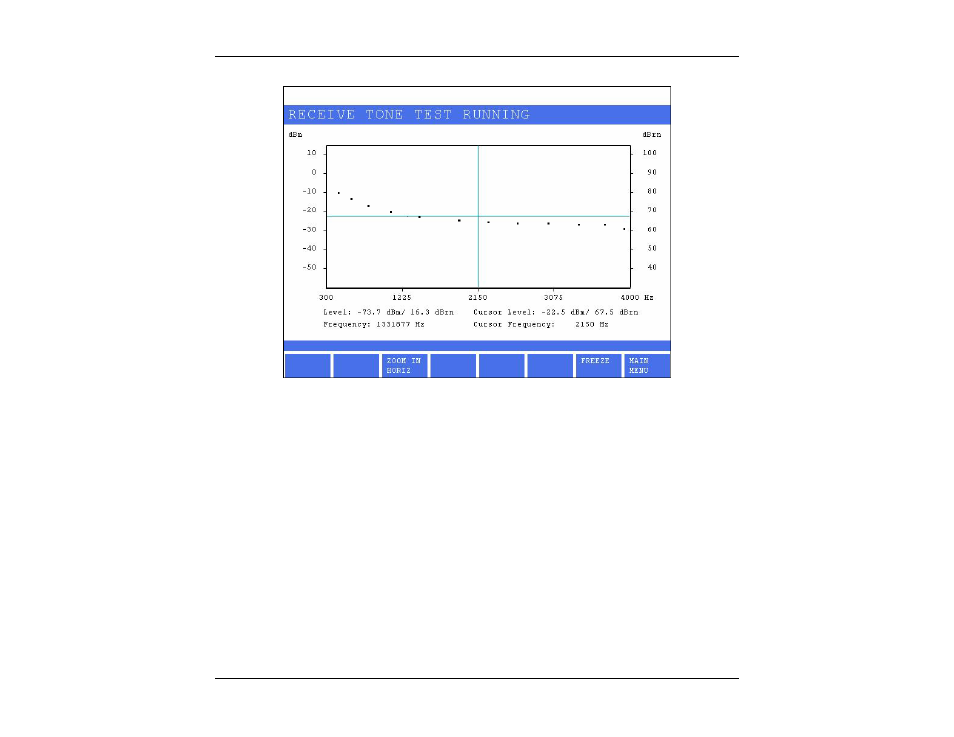

The result screen allows a user to graphically see the levels and frequencies that the CableSHARK is
receiving (see lower left numerical results for current level/frequency being measured by the CableSHARK.
By moving the LEFT/RIGHT and UP/DOWN arrow keys, users can move the cursors on screen to pin-point
precise points on screen. The Level/Frequency of the point highlighted by the cursor is displayed on the right
hand of the screen.
15.2.3 RX 3 Tone Slope
To measure 3 Tone Slope, select the VF TESTS option from the CABLE TESTS pop-up menu. Select
RECEIVE TONE from the VF TESTS sub-menu. To continue, press RUN/STOP.
