VF / DSL Cable Qualifier
298
J.6.3 New Connection Menu
To set up a connection between the PC to the CableSHARK, click on New Connection on the menu bar as
shown below.

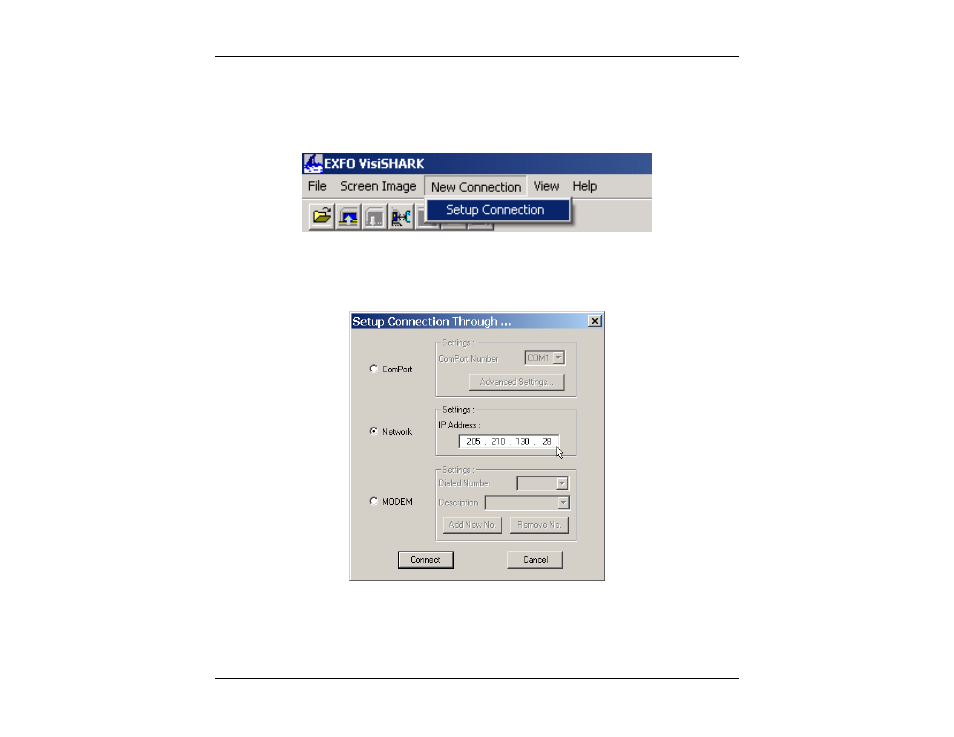

F IGURE J.6.3A – S ELECTING D IRECT C ONNECTION FROM THE N EW C ONNECTION M ENU
Next, click on Setup Connection on the pull-down menu that is displayed. The “Setup Connection
Through…” menu shown below is displalyed.
F IGURE J.6.3B – T HE S ETUP D IRECT C ONNECTION D IALOG
The radio buttons to the left-hand side of the menu allow the user to select from Setup Connection
Through…. a COM port, an Ethernet port, or connection through a MODEM.
