CableSHARK P3 User Guide
97
CAPACITANCE
N F/ MI OR N F/ KM
:
Allows the user to specify the cable’s capacitance constant. See Appendix B for
more information on loop characteristics.
RESISTANCE
O HM / MI OR
O HM / KM
Allows the user to specify the cable’s resistance constant. See Appendix B for more
information on loop characteristics.
ATTENUATION
dB/ MI OR dB/ KM
Allows the user to specify the cable’s attenuation constant. See Appendix B for more
information on loop characteristics.
EDIT /
SELECT MAIN
MENU
Test Type :
ADSL Evaluation:
DMT Noise Margin dB:
DMT Bits per Bin:
Max. Cap. Imbalance (%):
Cable Type:
VOP:
VOP (m/us):
ITU-T Annex A/POTS
0.660
198
AUTO
13
10
AUTO
E F CHG
ADSL2+ FROM CUSTOMER
WARNING
For Single End Test please ensure that the cable to be
tested is not terminated at the far end.
Note: telephone cables may have dangerous A.C. or
D.C. voltages on them, therefore caution should be taken
when connecting this test set.
!
SELECT
NEXT

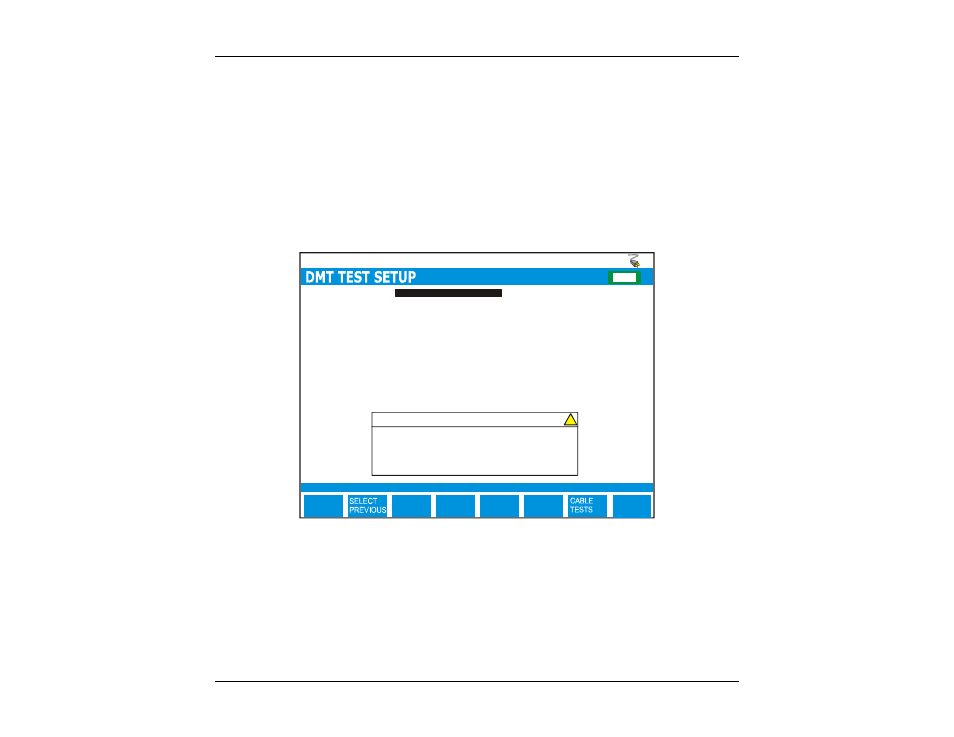

F IGURE 8.3.1B – S INGLE E ND DMT T EST S ETUP M ENU
The function button command selection at the bottom of the DMT Test Setup Menu consists of five options
available to the operator. The first three options (EDIT/SELECT, SELECT PREVIOUS, SELECT NEXT)
enable the modification of the test parameters (residing near the upper part of the screen). The last two
options at the bottom of the screen are CABLE TESTS and MAIN MENU. For some options for which a
numeric value must be entered, only three options may appear: EDIT/SELECT, CABLE TESTS and MAIN
MENU. To modify a test parameter, it must first be highlighted with the cursor. A
test parameter can be
highlighted by moving the cursor to the desired parameter with the Cursor Pad UP/DOWN arrow buttons.
