6.2 Responder Mode
Selecting RESPOND. MODE from the Main Menu invokes the REMOTE RESPONDER mode. This is used
for End-to-End tests where the unit that has the RESPOND. MODE activated will only transmit signals to a
Receiving unit. It is the Receiving unit that will display the test results. The illustration below shows the
Responder Mode screen.
E F CHG
CABLE
TESTS
MAIN
MENU

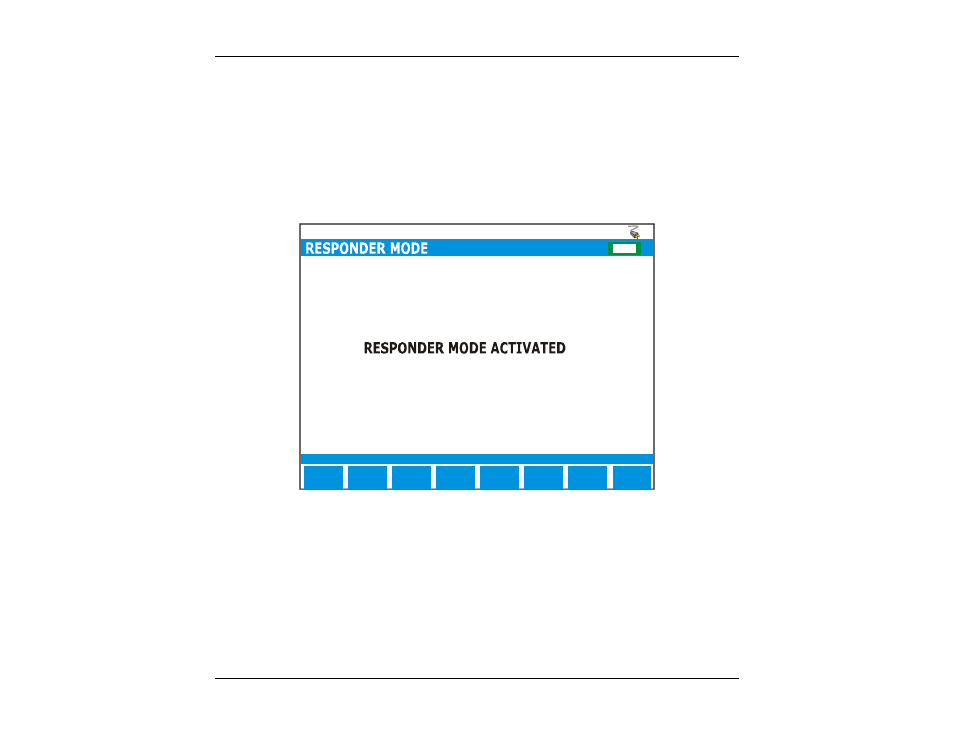

Figure 6.2A – The Responder Mode screen
CABLE TESTS Pressing the function button corresponding to CABLE TESTS will take the user
to the CABLE TESTS pop-up menu.
MAIN MENU Pressing the function button for MAIN MENU returns the user to the Main
Menu.
