CableSHARK P3 User Guide
143
MAIN
MENU
E F CHG
TEST
SETUP SAVE/
UPLOAD

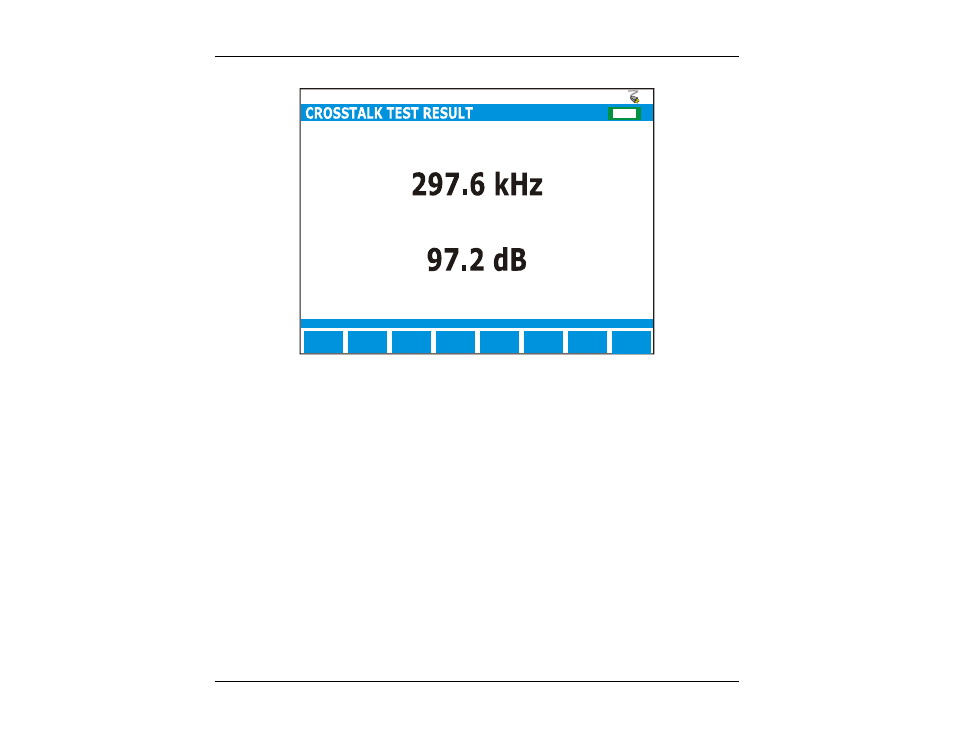

F IGURE 8.8.2B - R ESULTS OF 4-W IRE C ROSSTALK T EST
This test allows a user to continuous monitor the effects of crosstalk at a single frequency (until the
RUN/STOP key is pressed) and to adjust the frequency by using the UP and DOWN ARROW keys (from
17.3 kHz to 2.208 MHz).
