CableSHARK P3 User Guide
29

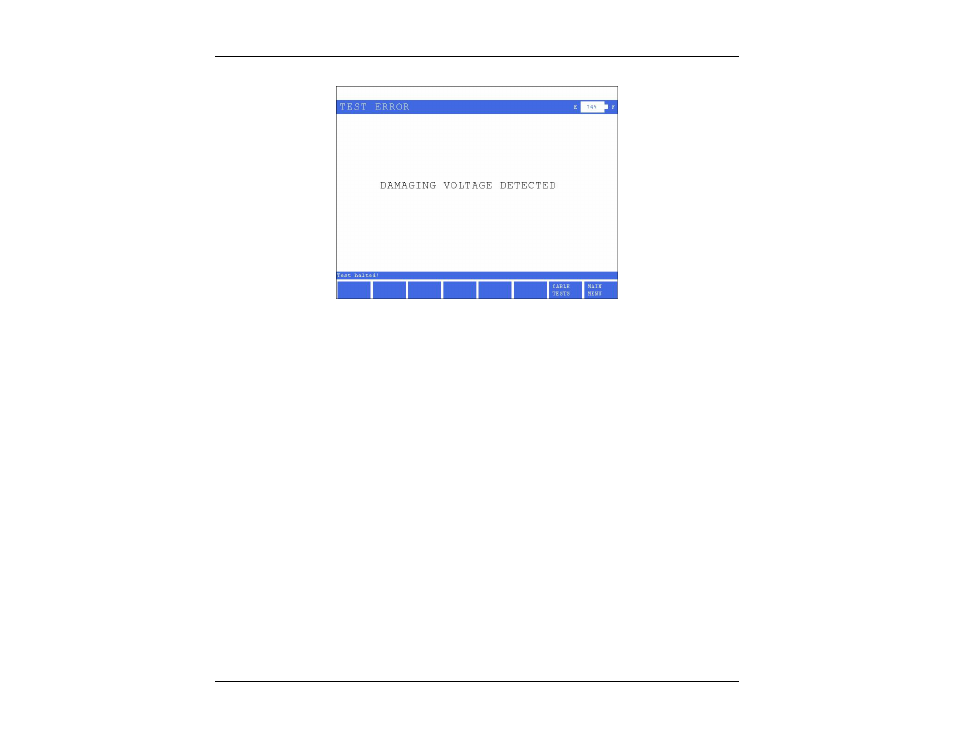

Figure 5.2.4A- Example of High Voltage Detection Screen
5.3 Saving and Recalling Results
Test results can be saved to and recalled from the CableSHARK’s non-volatile internal memory in addition to
an optional USB Memory. A user can save up to 128 results into internal memory and over 1000 results to a
16 Mbyte USB Memory.
5.3.1 Saving Results
Once a test has completed and been successfully displayed on the screen, the user can elect to save the
results to internal memory or to an optional USB Memory. This can be done by selecting the appropriate
function key; either SAVE TO MEMORY or SAVE TO USB.
Pressing either the SAVE TO MEMORY or SAVE TO USB button will display a dialog box allowing the user
to enter an alphanumeric file name as seen in the following screen:
