CableSHARK P3 User Guide
195

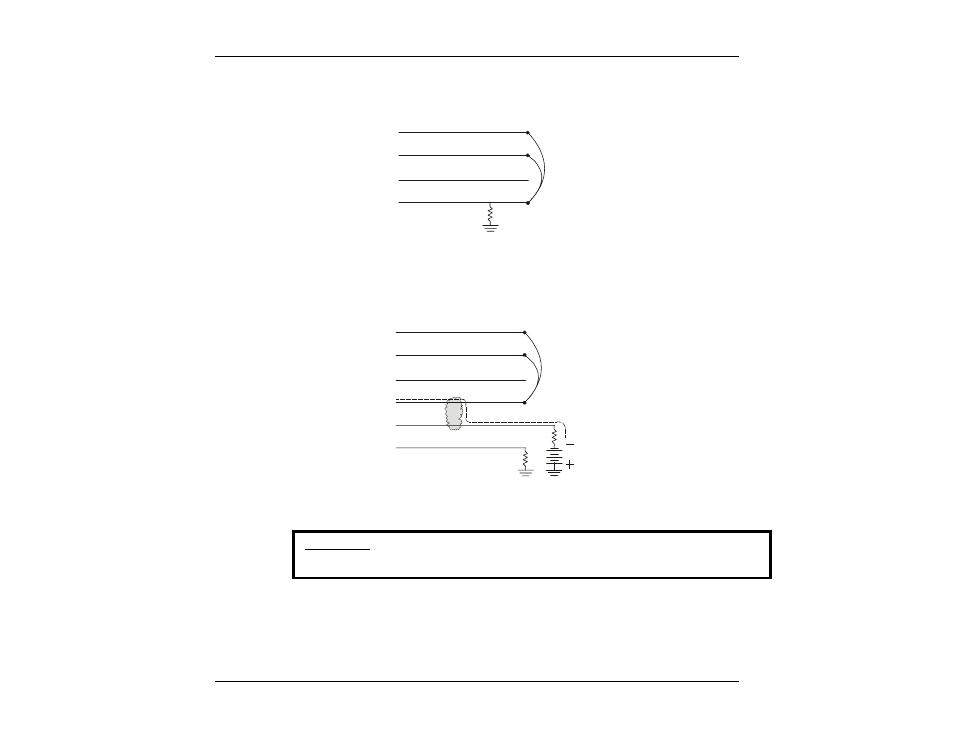

Fault TIP-GROUND or RING-GROUND
T
R
T
R
Good pair
Strap
Faulty pair
F IGURE 12.1.1.6B – T O G ROUND F AULT : S TRAP P LACEMENT
Battery Cross Fault
T
R
T
R
X
X
X
X
T
R
Strap Good pair
Faulty pair
F IGURE 12.1.1.6C – B ATTERY C ROSS : S TRAP P LACEMENT
IMPORTANT: Follow the CableSHARK’s instructions for the correct Strap configuration.
An improperly connected strap will force the RFL test to give misleading results.
