Allied Telesis AT-S62 - Manual (Page 95)

AT-S62 Management Software Web Browser Interface User’s Guide
Section I: Basic Operations 95

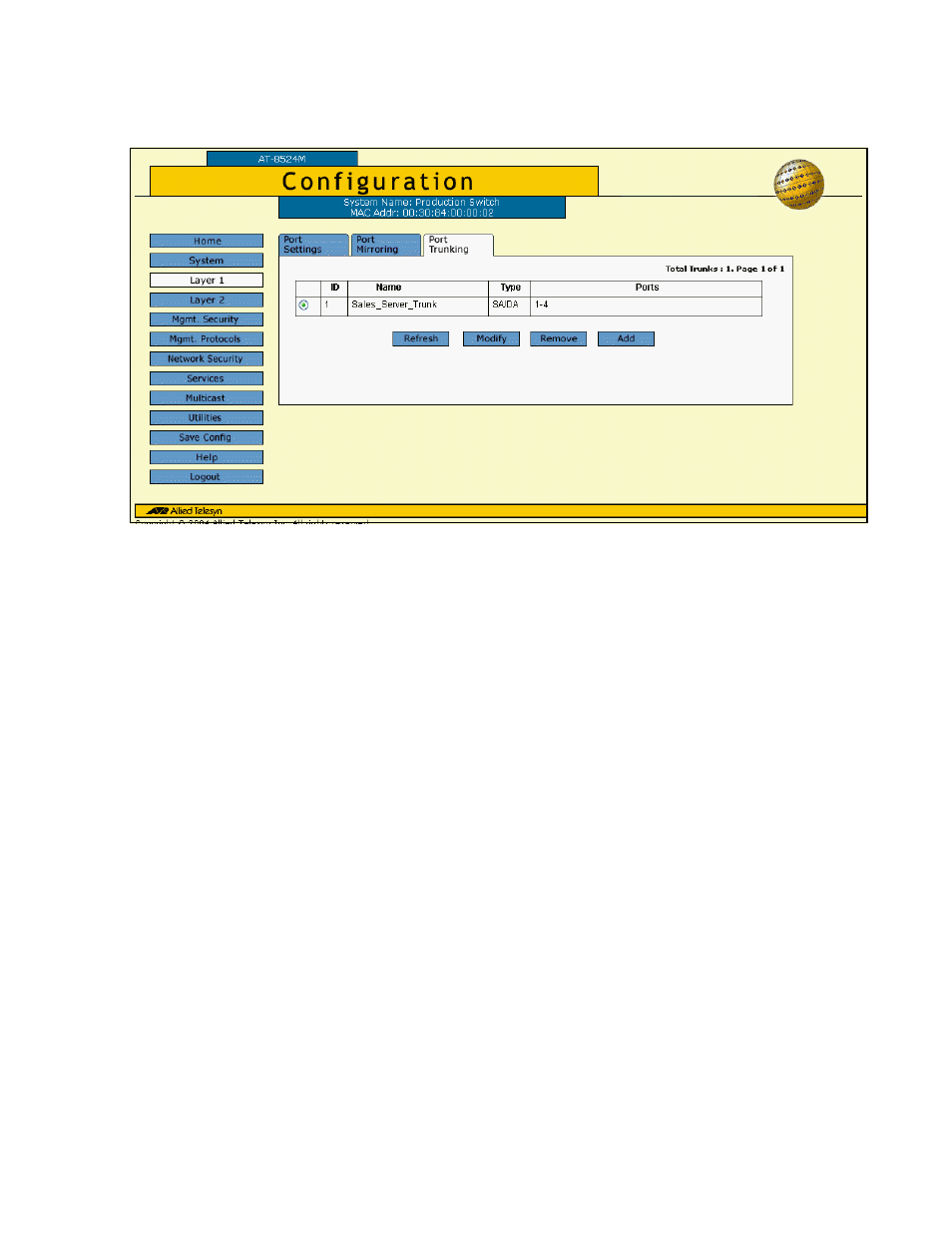

The Port Trunking tab is shown in Figure 21.
Figure 21. Port Trunking Tab
This tab lists the existing trunks. Columns in the tab are defined below:
ID
The ID number of the trunk.
Name
The name of the trunk.
Type
The load distribution method:
ˆ SA - Source MAC address (Layer 2)
ˆ DA - Destination MAC address (Layer 2)
ˆ SA/DA - Source MAC address /destination MAC address (Layer 2)
ˆ SI - Source IP address (Layer 3)
ˆ DI - Destination IP address (Layer 3)
ˆ SI/DI - Source IP address /destination IP address (Layer 3)
Ports
The ports of the trunk.
4. Click Add.
