Chapter 2: Basic Switch Parameters
48 Section I: Basic Operations
Pinging a Remote System
This procedure instructs the switch to ping a node on your network. This
function can establish whether a valid link exists between the switch and
another device. Note the following before performing the procedure:
ˆ The switch must have an IP address.
ˆ The device to be pinged must be a member of the switch’s
management VLAN, meaning it must be communicating with the
switch through an untagged or tagged port of the management VLAN.
To ping a network device, perform the following procedure:
1. From the Home Page, select Monitoring.
2. From the Monitoring menu, select Utilities.
3. Select the Ping Client tab.

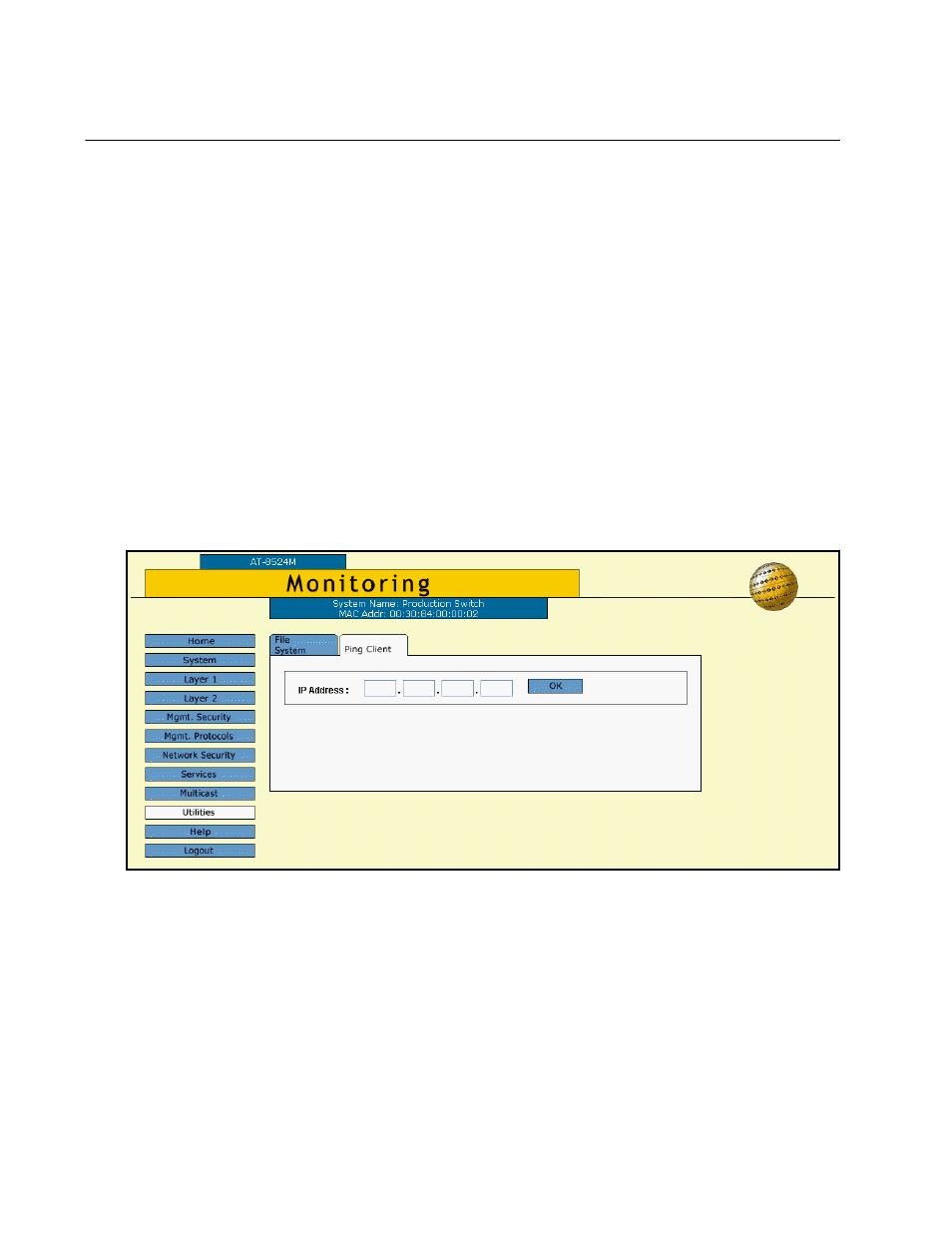

The Ping Client tab is shown in Figure 7.
Figure 7. Ping Client Tab
4. Enter the IP address of the end node you want the switch to ping.
5. Click OK.
The results of the ping are displayed in a popup window.
6. To stop the ping, click OK.
