Figure 96: mstp spanning tree tab – Allied Telesis AT-S62 User Manual
Page 284
Chapter 20: Spanning Tree, Rapid Spanning Tree, and Multiple Spanning Tree Protocols
284
Section IV: Spanning Tree Protocols
The MSTP Spanning Tree tab is shown in Figure 96.

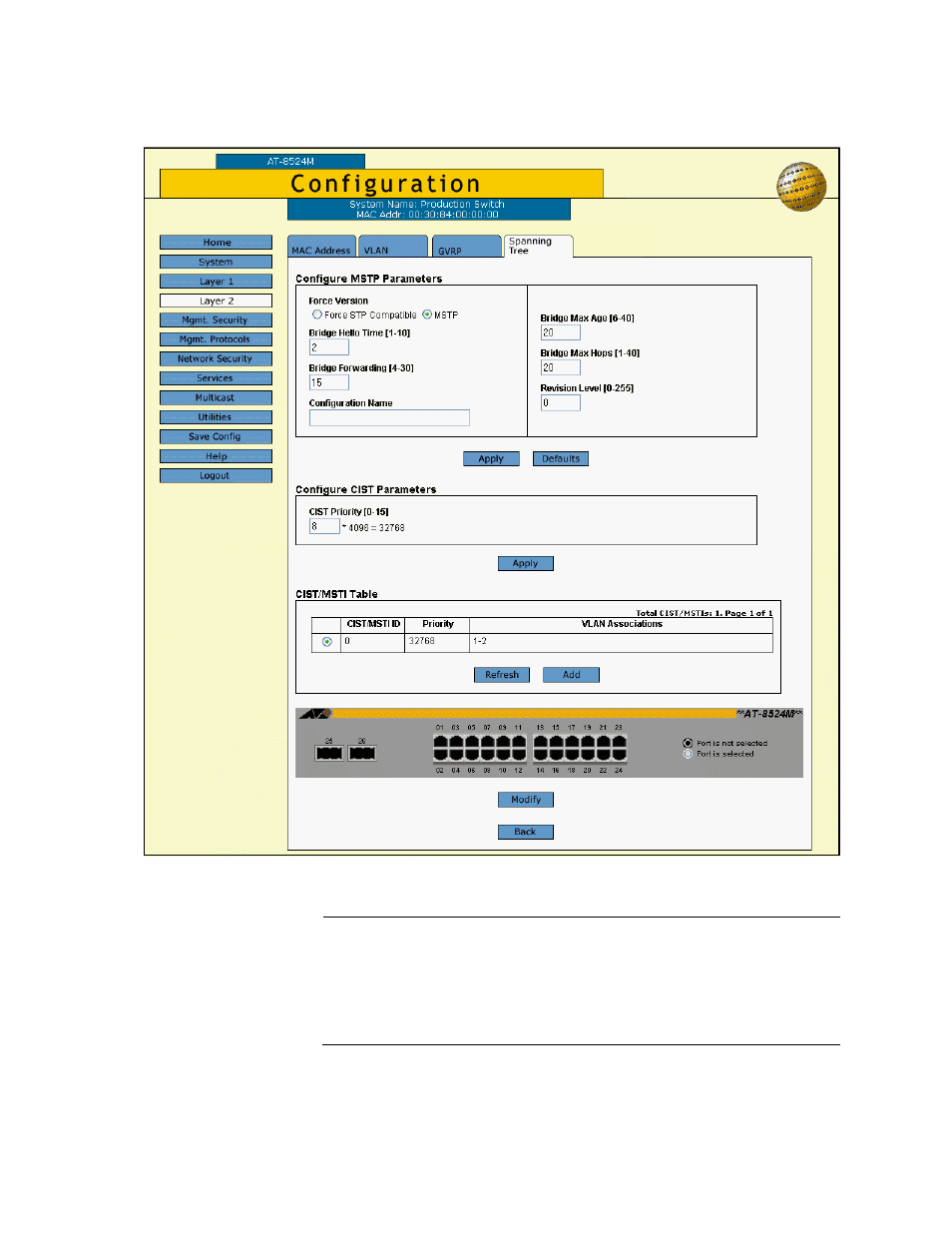

Figure 96. MSTP Spanning Tree Tab
Note
This procedure explains the Configure MSTP Parameters and
Configure CIST Parameters sections of the web page. The CIST/
MSTI Table is explained in “Associating VLANs to MSTIs” on
page 286. The graphic image of the switch is described in
“Configuring MSTP Port Parameters” on page 289.
