Allied Telesis AT-S62 - Manual (Page 363)

AT-S62 Management Software Web Browser Interface User’s Guide
Section VII: Management Security 363

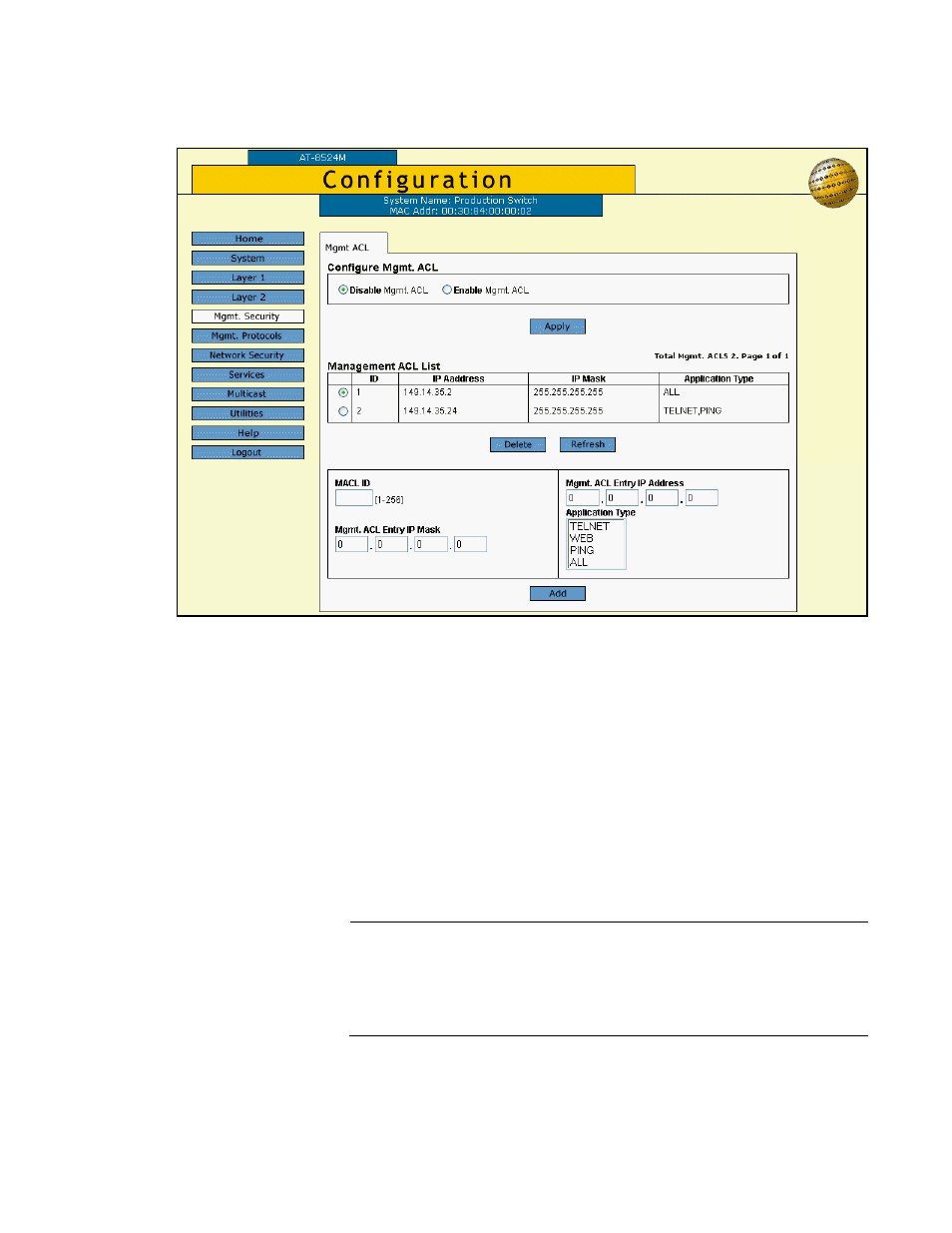

This menu option has only one tab, Mgmt ACL, shown in Figure 119.
Figure 119. Mgmt. ACL Tab (Configuration)
The middle section of the tab lists the existing ACEs on the switch and
is used to delete ACEs. The bottom portion is used to add entries. For
instructions, refer to “Creating an ACE” on page 364 and “Deleting an
ACE” on page 366.
3. Click either Enable Mgmt. ACL or Disable Mgmt. ACL. The default
setting is disabled.
4. Click Apply.
A change to the status of the Management ACL is immediately
activated on the switch.
Note
If you activate the management ACL without entering an ACE that
specifies your management workstation by its IP address or subnet,
your web browser management session will end and you will not be
able to reestablish it.
5. To permanently save your change, select the Save Config menu
selection.
