Allied Telesis AT-S62 - Manual (Page 243)

AT-S62 Management Software Web Browser Interface User’s Guide
Section III: SNMPv3 243
Modifying Target
Address Table
Entry
To modify an entry in the SNMPv3 Target Address Table, perform the
following procedure.
1. From the Home Page, select Configuration.
2. Select the Mgmt Protocols menu selection.
3. Select the SNMP Tab.
The SNMP Tab is shown in Figure 58 on page 206.
4. In the SNMPv3 section of the page, click the circle next to Configure
Target Address Table. Then click Configure at the bottom of the page.
The SNMPv3 Target Address Table Page is shown in Figure 74 on
page 240.
5. Display the Target Address Table entry that you want to change.
Click Next or Previous to display an entry.
6. Click Modify.

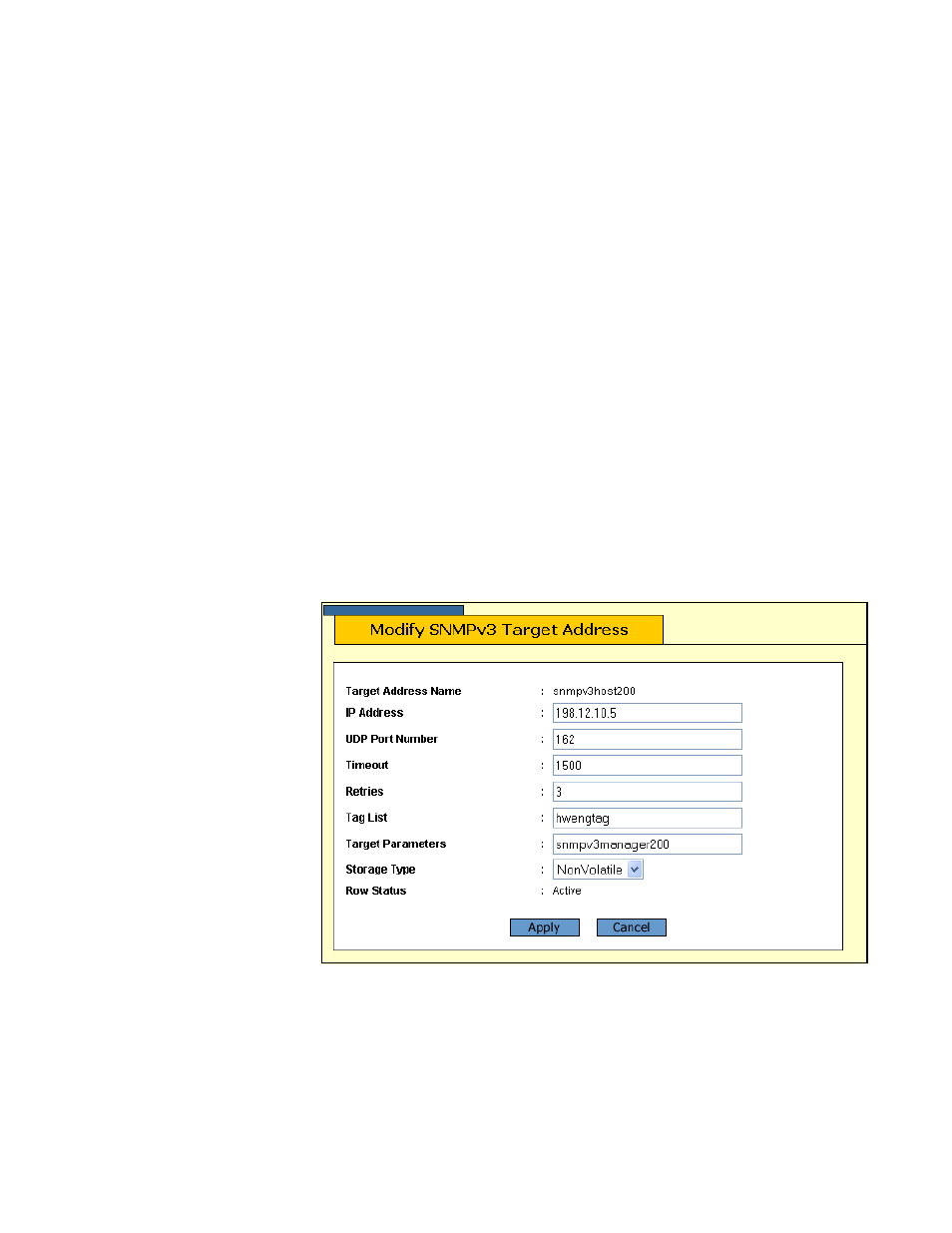

The Modify SNMPv3 Target Address Table Page is shown Figure 76.
Figure 76. Modify SNMPv3 Target Address Table Page
7. In the IP Address field, enter the IP address of the host.
Use the following format for an IP address:
XXX.XXX.XXX.XXX
