Chapter 4: SNMPv1 and SNMPv2c Community Strings
64 Section I: Basic Operations
Creating a New SNMPv1 or SNMPv2c Community String
To create a new SNMPv1 or SNMPv2c community string, perform the
following procedure:
1. From the Home page, select Configuration.
2. Select the Mgmt. Protocols menu option.
3. Select the SNMP tab.
The SNMP tab is shown in Figure 11 on page 62.
4. Click Configure in the SNMPv1/v2c section of the tab.
The SNMP tab for SNMPv1 and SNMPv2c community strings is
shown in Figure 12.

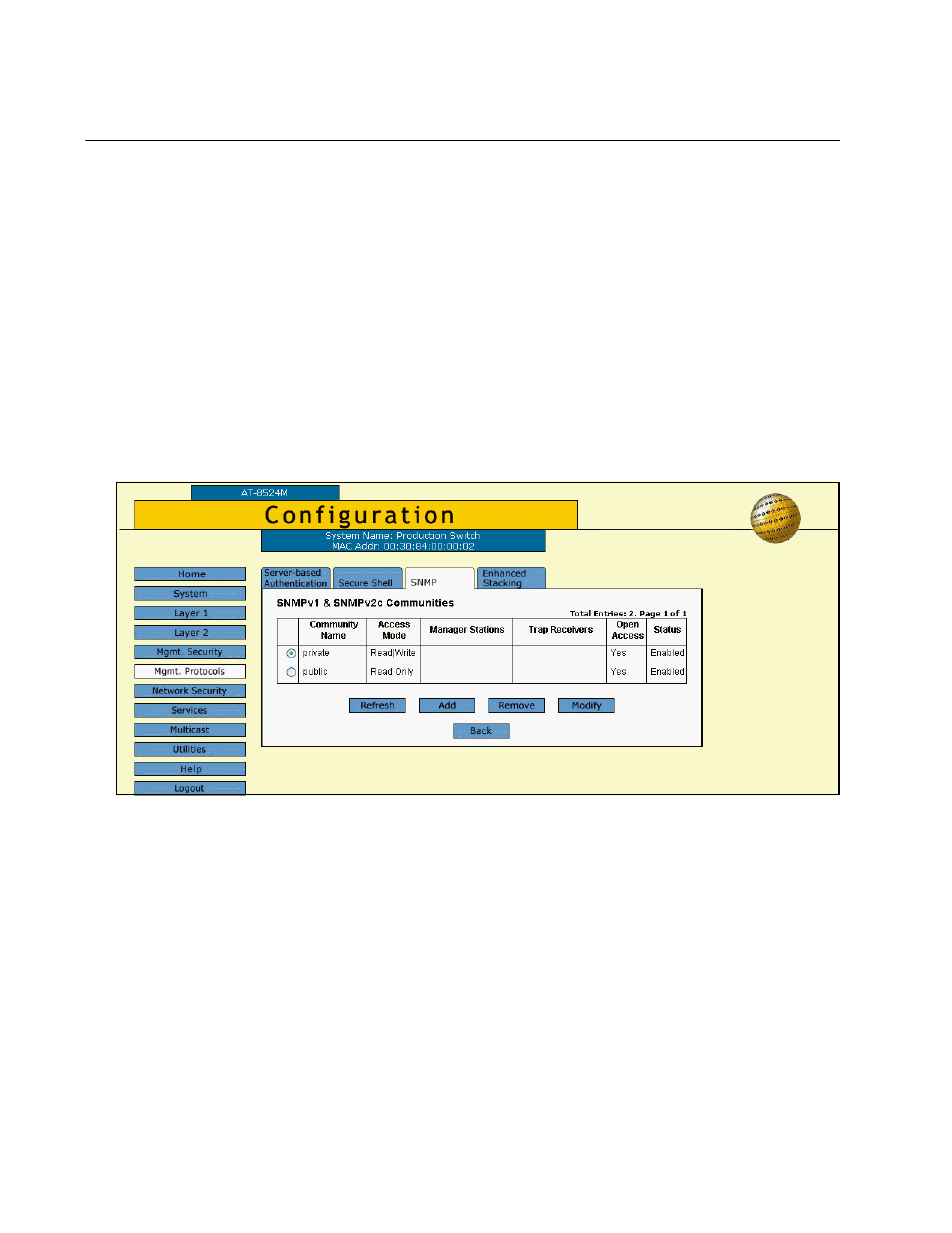

Figure 12. SNMP (SNMPv1 and SNMPv2c) Tab
The community strings already existing on the switch are displayed in
the table. The columns are defined below:
Community Name
The name of a community string.
Access Mode
Whether the string’s access is read/write or read only.
Manager Stations
The IP addresses of the management stations that can use the
community string to access the switch. This only applies if the string
has a closed access status.
