AT-S62 Management Software Web Browser Interface User’s Guide
Section IV: Spanning Tree Protocols 293
Displaying Spanning Tree Settings
To display the parameter settings for the active spanning tree, perform the
following procedure:
1. From the Home page, select Monitoring.
2. From the Monitoring menu, select Layer 2.
3. Select the Spanning Tree tab.
The Spanning Tree tab is shown in Figure 100.

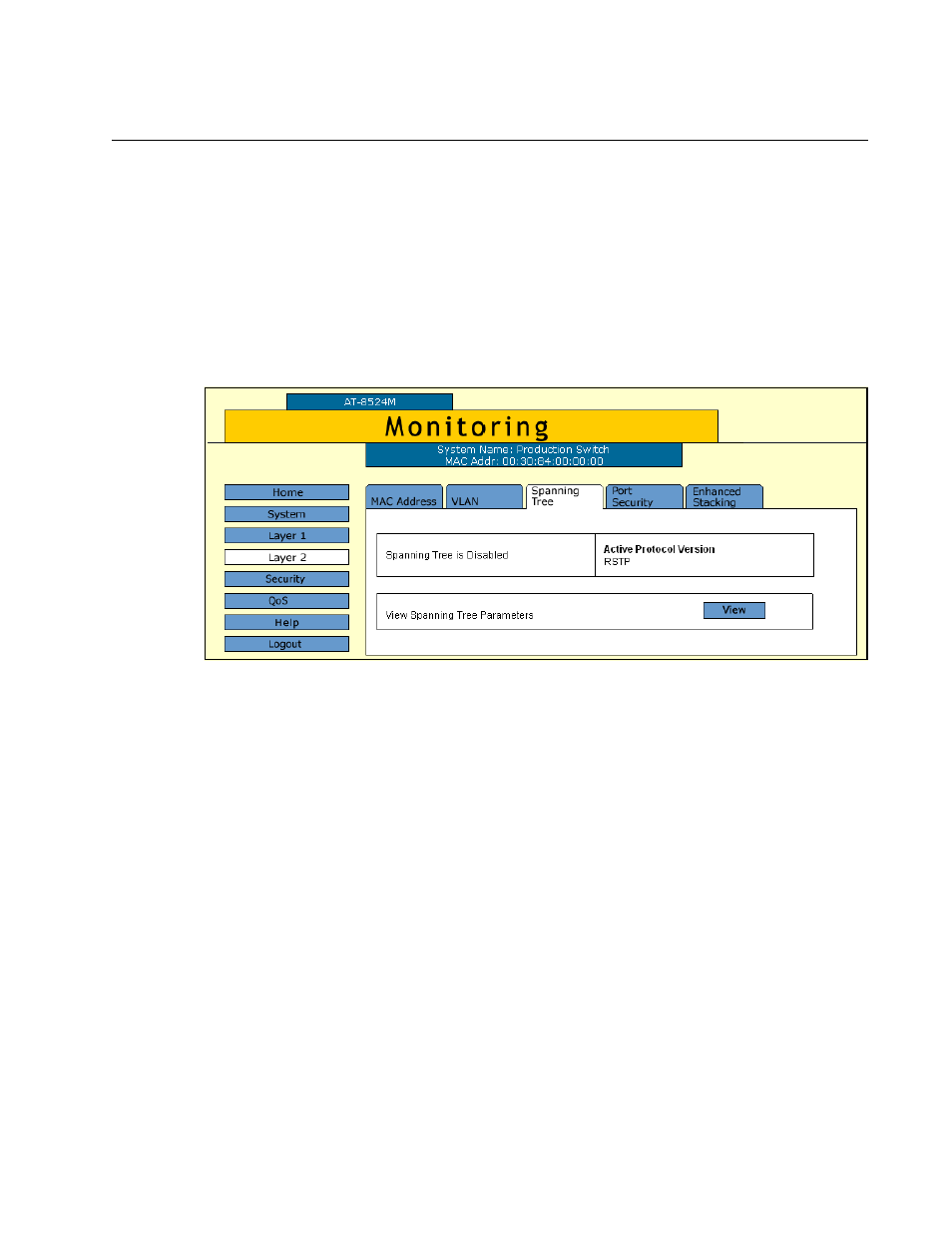

Figure 100. Spanning Tree Tab (Monitoring)
This tab displays information on whether spanning tree is enable or
disabled and which protocol version is active.
4. Click View.
5. To view port settings, click a port in the graphical image of the switch
and click Status or Settings.
For explanations of the spanning tree parameters, refer to earlier
sections in this chapter.
