AT-S62 Management Software Web Browser Interface User’s Guide
Section VI: Port Security 327
Displaying MAC Address-based Port Security
To display the MAC address-based port security level of a port, perform
the following procedure:
1. From the Home page, select Monitoring.
2. Select Network Security.
3. Select the Port Security tab.
4. Click the port whose port security level you want to view. A selected
port turns white. You can select more than one port at a time.
5. Click View. The security information for the selected ports is displayed
in the Security for Port(s) page. An example is shown in Figure 107.

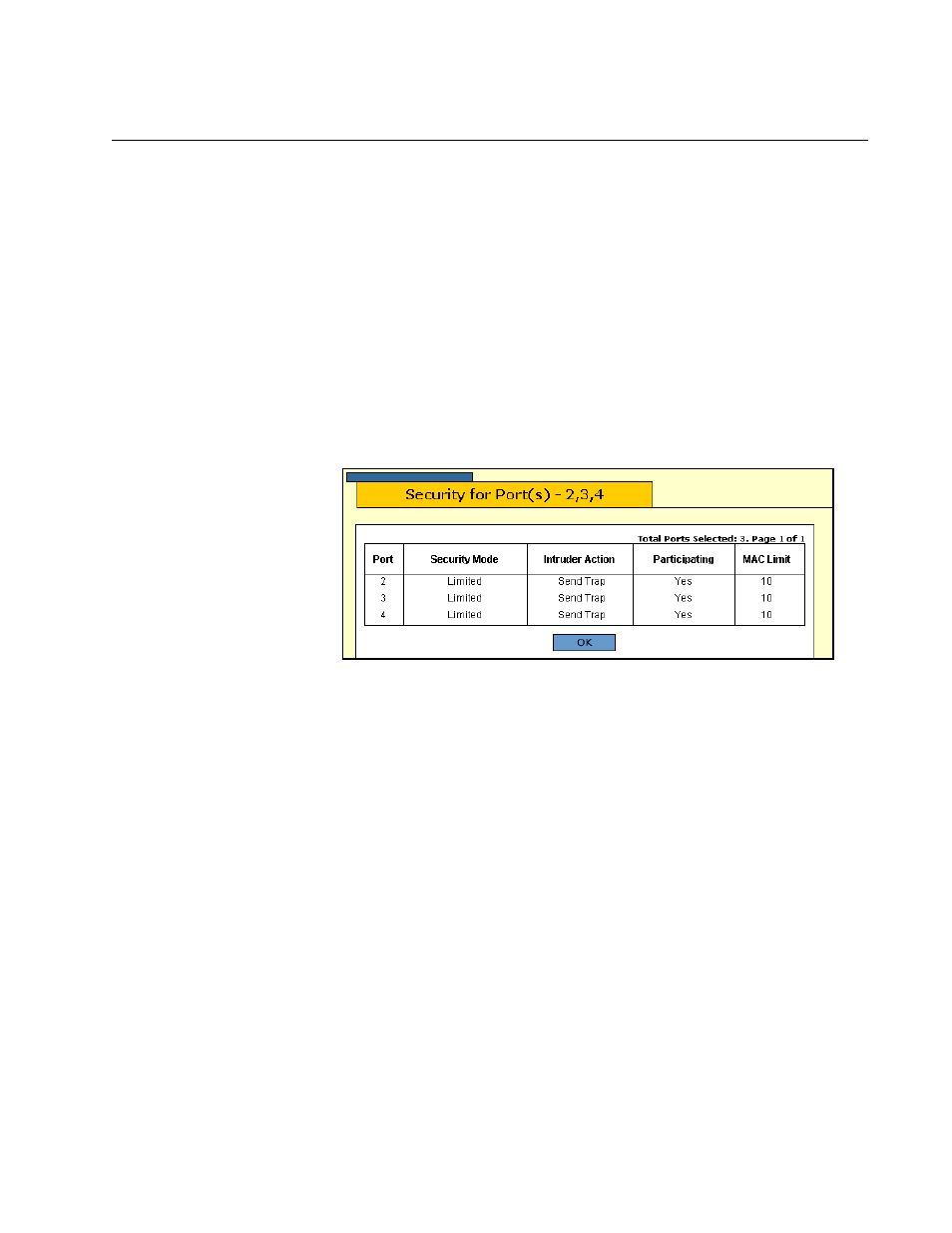

Figure 107. Security for Port(s) Tab
This page is for viewing purposes only. The columns in the page are
defined below:
Port
The number of the port.
Security Mode
The active security mode on the port.
Intruder Action
The column specifies the action taken by a port when it receives an
invalid frame.
ˆ Discard: The port discards invalid frames. This is the default.
ˆ Send Trap: The port discards invalid frames and sends a trap. This
action applies only to the Limited security mode.
ˆ Disable Port: The port discards invalid frames, sends a trap, and
disables the port. This action applies only to the Limited security
mode.
