AT-S62 Management Software Web Browser Interface User’s Guide
Section III: SNMPv3 219
Modifying a View
Table Entry
To modify an entry in the SNMPv3 View Table, perform the following
procedure.
1. From the Home Page, select Configuration.
2. Select the Mgmt Protocols menu selection.
3. Select the SNMP Tab.
The SNMP Tab is shown in Figure 58 on page 206.
4. In the SNMPv3 section of the page, click the circle next to Configure
View Table. Then click Configure at the bottom of the page.
The SNMPv3 View Table Page is shown in Figure 62 on page 215.
5. To modify an SNMPv3 View Table entry, click the circle next to the
SNMPv3 View Table entry that you want to change. Then click Modify.
The Modify SNMPv3 View Page is shown in Figure 64.

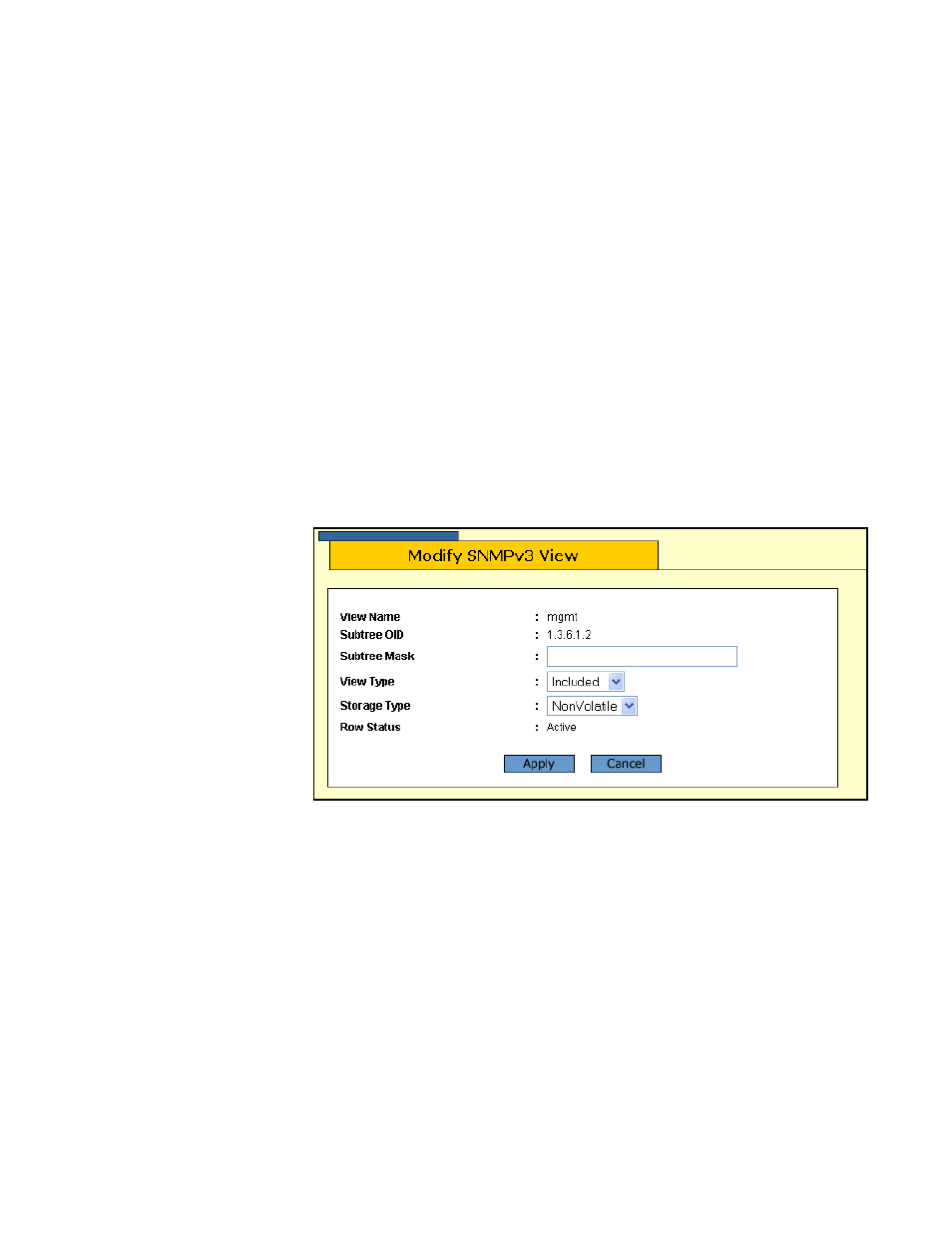

Figure 64. Modify SNMPv3 View Page
6. In the Subtree Mask field, enter a subtree mask in hexidecimal format.
This is an optional parameter that is used to further refine the value in
the View Subtree parameter. This parameter is in binary format.
The View Subtree parameter defines a MIB View and the Subtree
Mask further restricts a user’s view, for example, to a specific row of
the MIB tree. The value of the Subnet Mask parameter is dependent
on the subtree you select. See RFC 2575 for detailed information
about defining a subnet mask.
