Status
This column contains the status of the mirroring feature. If enabled,
traffic is being copied to the destination port. If disabled, no traffic is
being mirrored.
4. Click Modify.

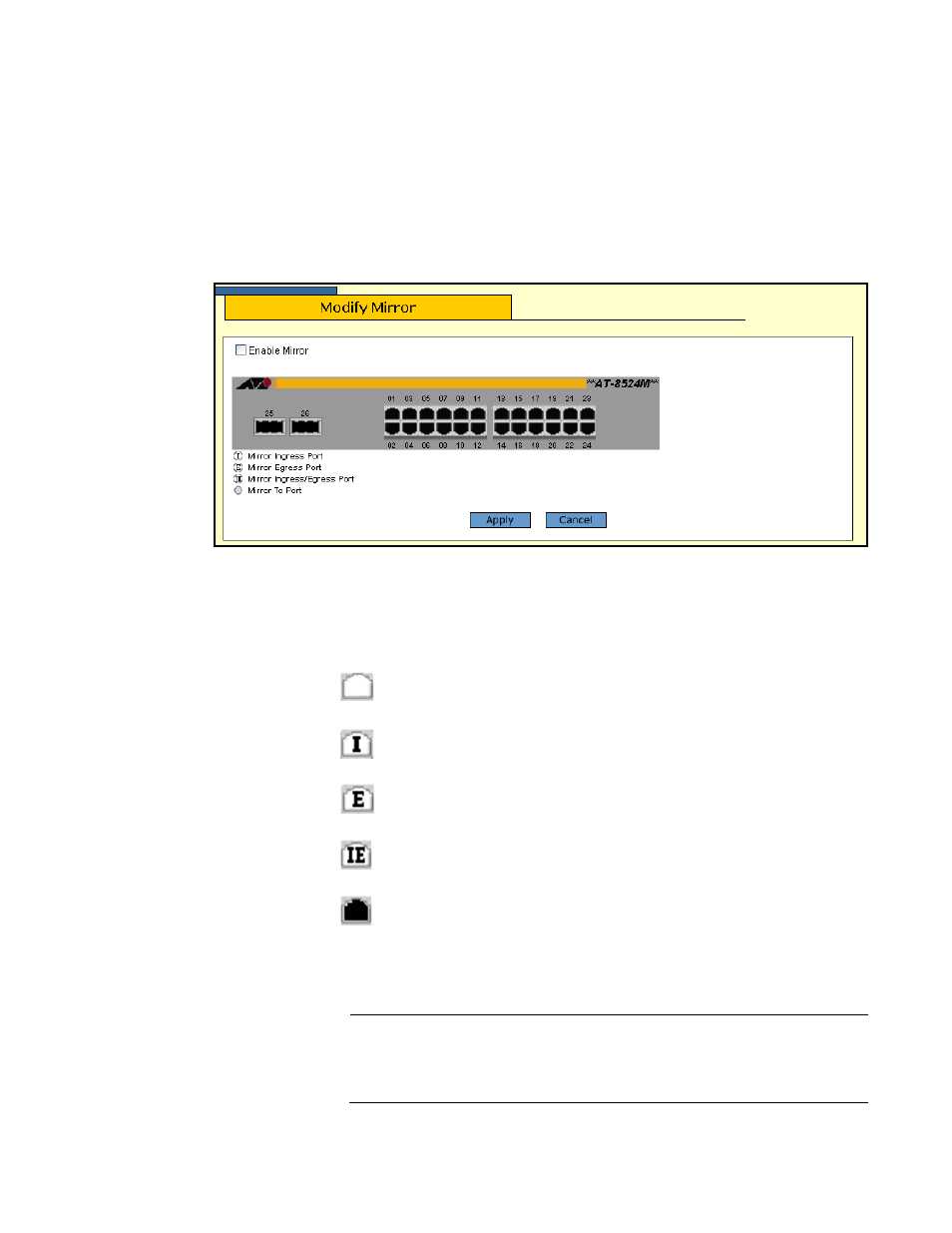

The Modify Mirror page is shown in Figure 25.
Figure 25. Modify Mirror Page
5. Click the ports of the port mirror. Clicking a port toggles it through the
possible settings, which are shown here:
You can mirror one port, a few ports, or all of the ports on the switch,
with the exception, of course, of the destination port.
Note
When creating a mirror port for the Denial of Service defenses,
specify only the destination port. The management software
automatically determines the source ports.
The destination (mirror) port. There can be only one
destination port.
A source port. The port’s ingress traffic is mirrored to the
destination port.
A source port. The port’s egress traffic is mirrored to the
destination port.
A source port. The port’s ingress and egress traffic is
mirrored to the destination port.
Not part of a port mirror.
