Description
A description of the ACL.
Action
The action of the ACL. An action of Permit means the ACL accepts
packets that match the traffic flows defined by the classifiers. An action
of Deny means that the ACL discards ingress packets that match the
defined traffic flows, provided that the packets do not also meet the
criteria of a Permit ACL. (A Permit ACL overrides a Deny ACL.)
Active
The status of the ACL. A status of Yes means that the ACL is assigned
to at least one port on the switch. A status of No means the ACL is not
assigned to any ports and so is inactive
Classifier List
The classifiers assigned to an ACL.
Port List
The ports where an ACL is assigned.
4. To create a new ACL, click Create. The Create ACLs page is shown in

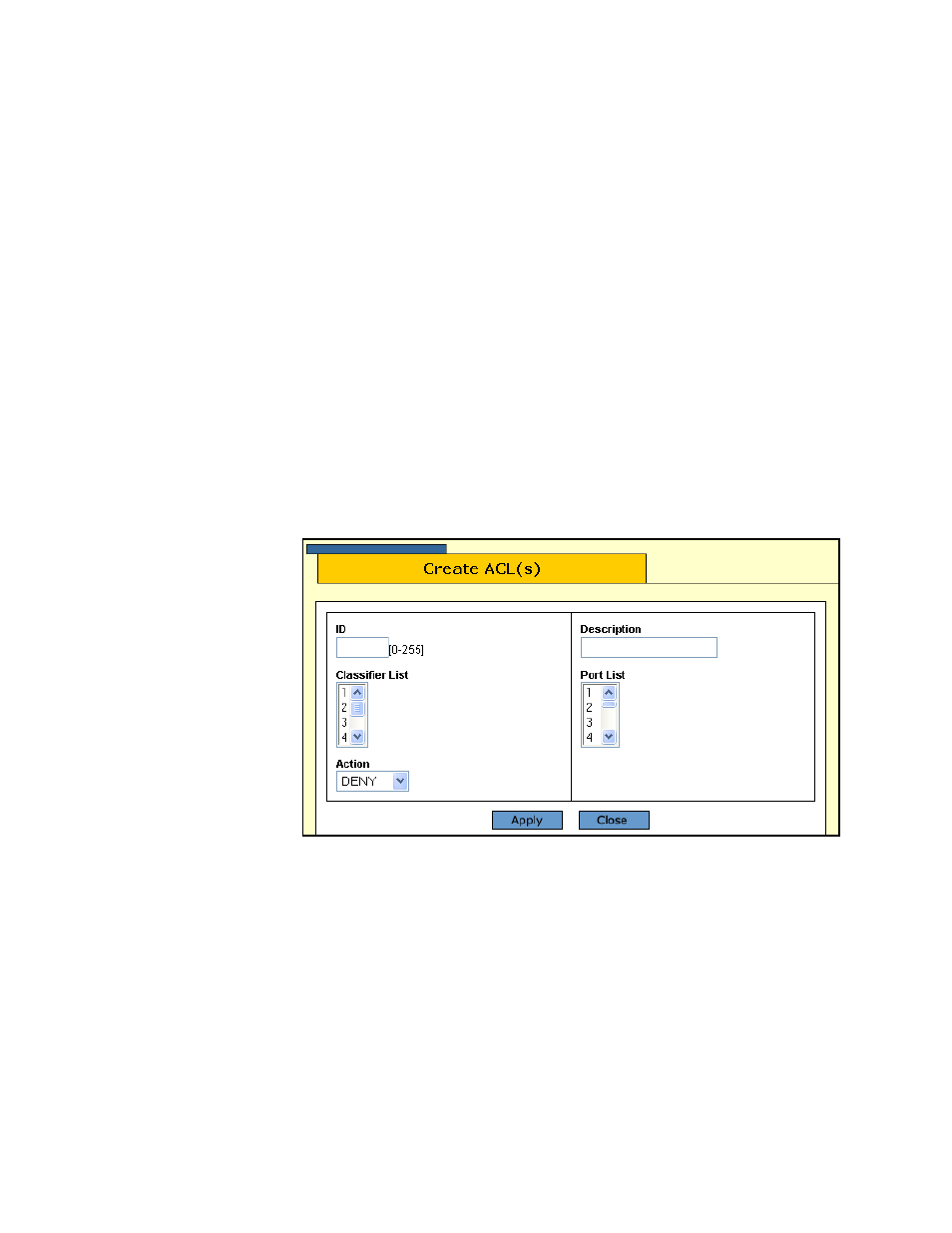

Figure 38. Create ACLs Page
5. Configure the following parameters:
ID
Use this field to enter an ID number for the ACL. Every ACL on the
switch must have a unique ID number. The range is 0 to 255.
Classifier List
Use this list to select the classifier you want to assign to this ACL. You
can assign more than one classifier to an ACL. To select multiple
classifiers, hold down the Ctrl key while making your selections. To
view the classifiers on a switch, refer to “Displaying the Classifiers” on
page 146. An ACL must have at least one classifier.
