AT-S62 Management Software Web Browser Interface User’s Guide
Section VII: Management Security 347
Displaying PKI Settings and Certificates
To display the self-signed and CA certificates stored in the certificate
database and the PKI settings, do the following:
1. From the Home page, select Monitoring.
2. Select the Mgmt. Security menu selection.
3. Select the PKI tab.

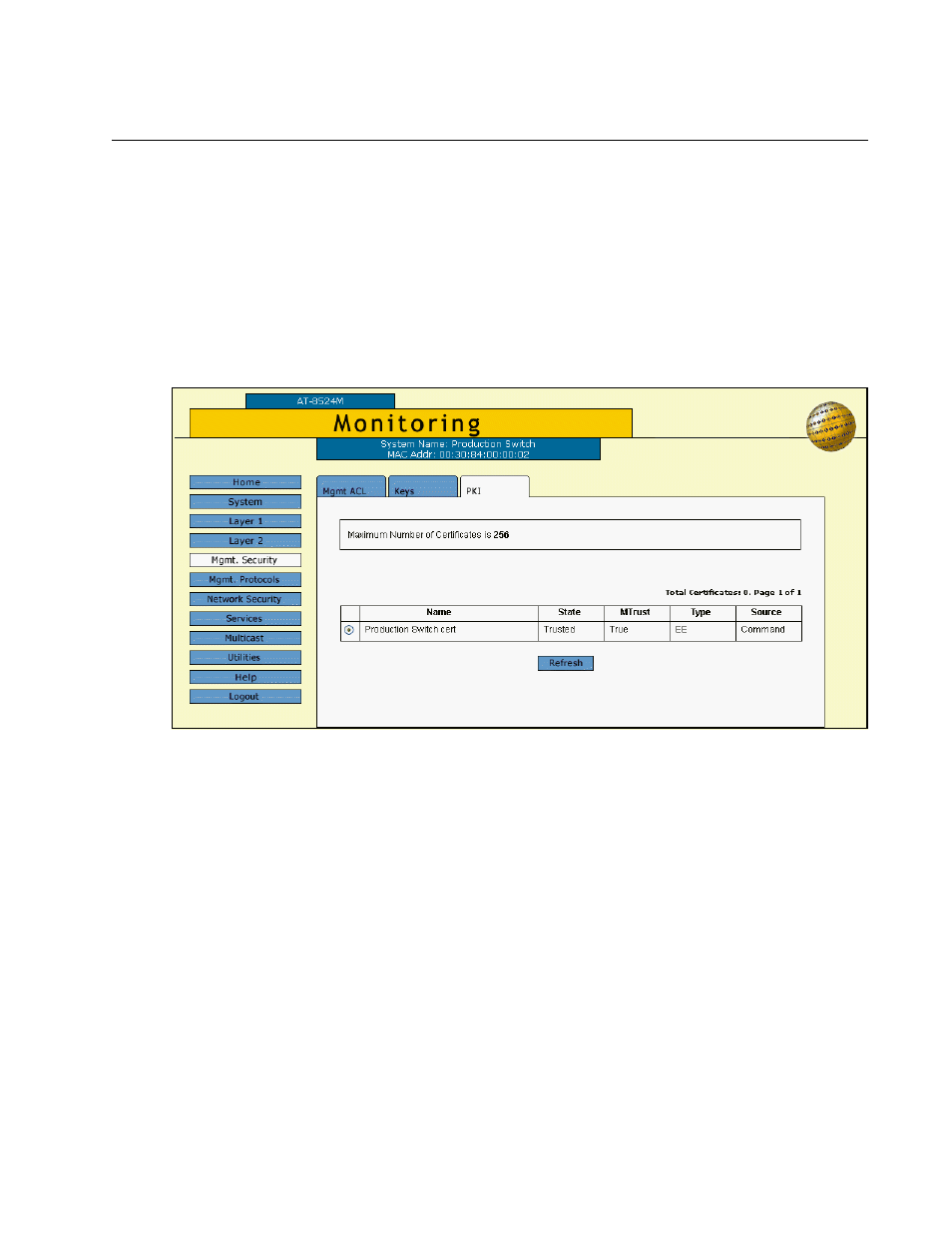

The PKI tab is shown in Figure 112.
Figure 113. PKI Tab (Monitoring)
The upper section states the maximum number of certificates that can
be configured on the switch.
The lower section displays a table that lists the currently configured
certificates and contains the following columns of information:
Name
The certificate name.
State
The state of the certificate, one of the following:
ˆ Trusted - The certificate is from a trusted CA.
ˆ Untrusted - The certificate is from an untrusted CA.
