AT-S62 Management Software Web Browser Interface User’s Guide
Section II: Advanced Operations 151
Modifying an Access Control List
To modify an ACL, perform the following procedure:
1. From the Home Page, select Configuration.
2. Select the Network Security menu selection.
3. Select the ACL tab.
The ACL tab is shown in Figure 37 on page 148.
4. Click the dialog circle next to the ID number of the ACL you want to
modify and click Modify. You can modify only one ACL at a time. The
Modify ACLs page is shown in Figure 39.

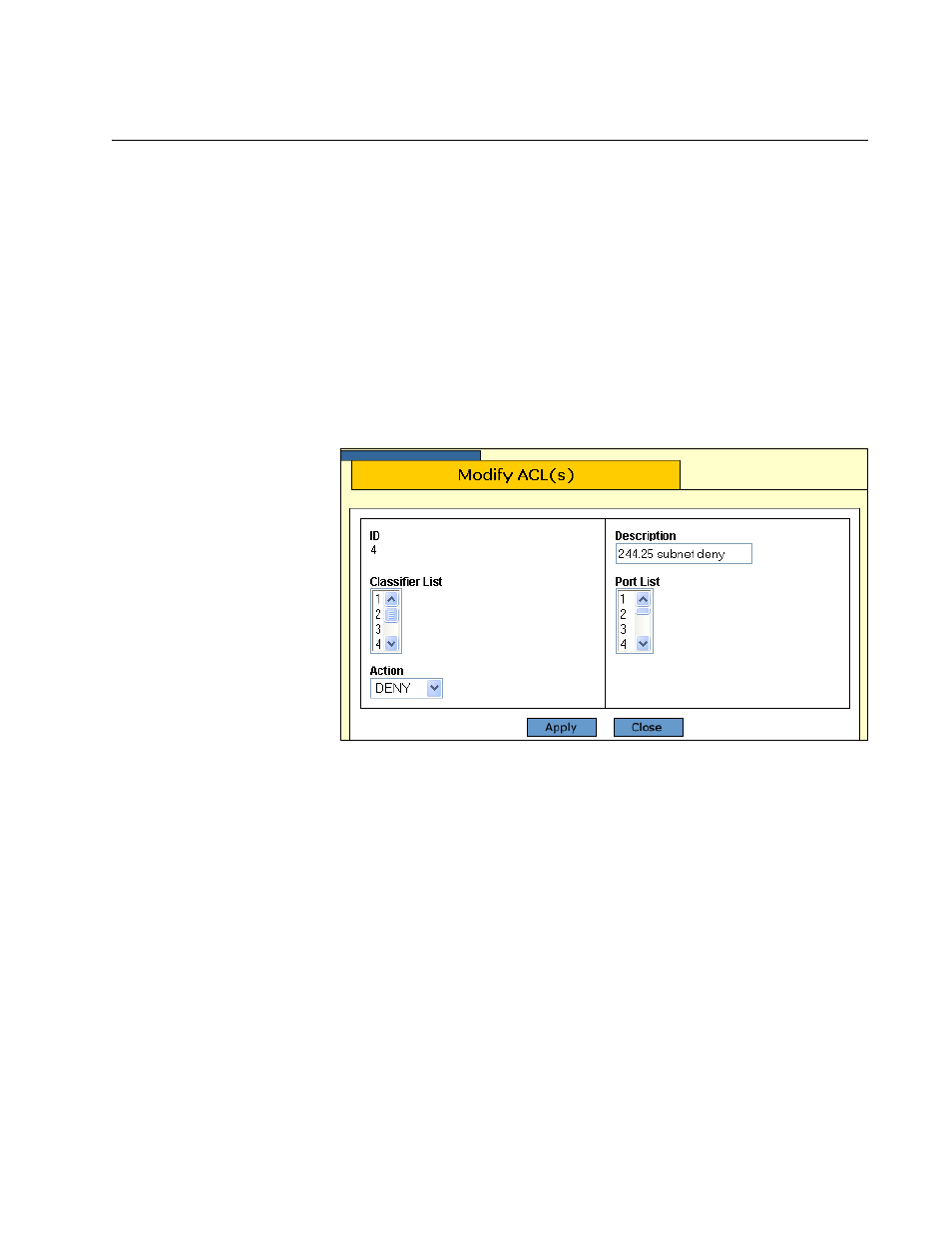

Figure 39. Modify ACLs Page
5. Configure the following parameters as necessary:
ID
The ID number of the ACL. You cannot change this value.
Classifier List
Use this list to select the classifier you want to assign to this ACL. You
can assign more than one classifier to an ACL. To select multiple
classifiers, hold down the Ctrl key while making your selections. To
view the classifiers, refer to “Displaying the Classifiers” on page 146.
An ACL must have at least one classifier.
Action
Use this menu to specify the action of the ACL. Deny, which is the
default, discards ingress packets that match the defined traffic flow of
the classifier. Permit accepts the packets. The default is Deny.
