EQ/Levels Menu Reference
6.4.3 Linear Phase Crossovers
The linear phase crossover Modules provide steep crossovers without phase distortion. Figure 6-15 shows
the XOVER screen for a Linear Phase Brick Wall 4-Way Module (LP4way).

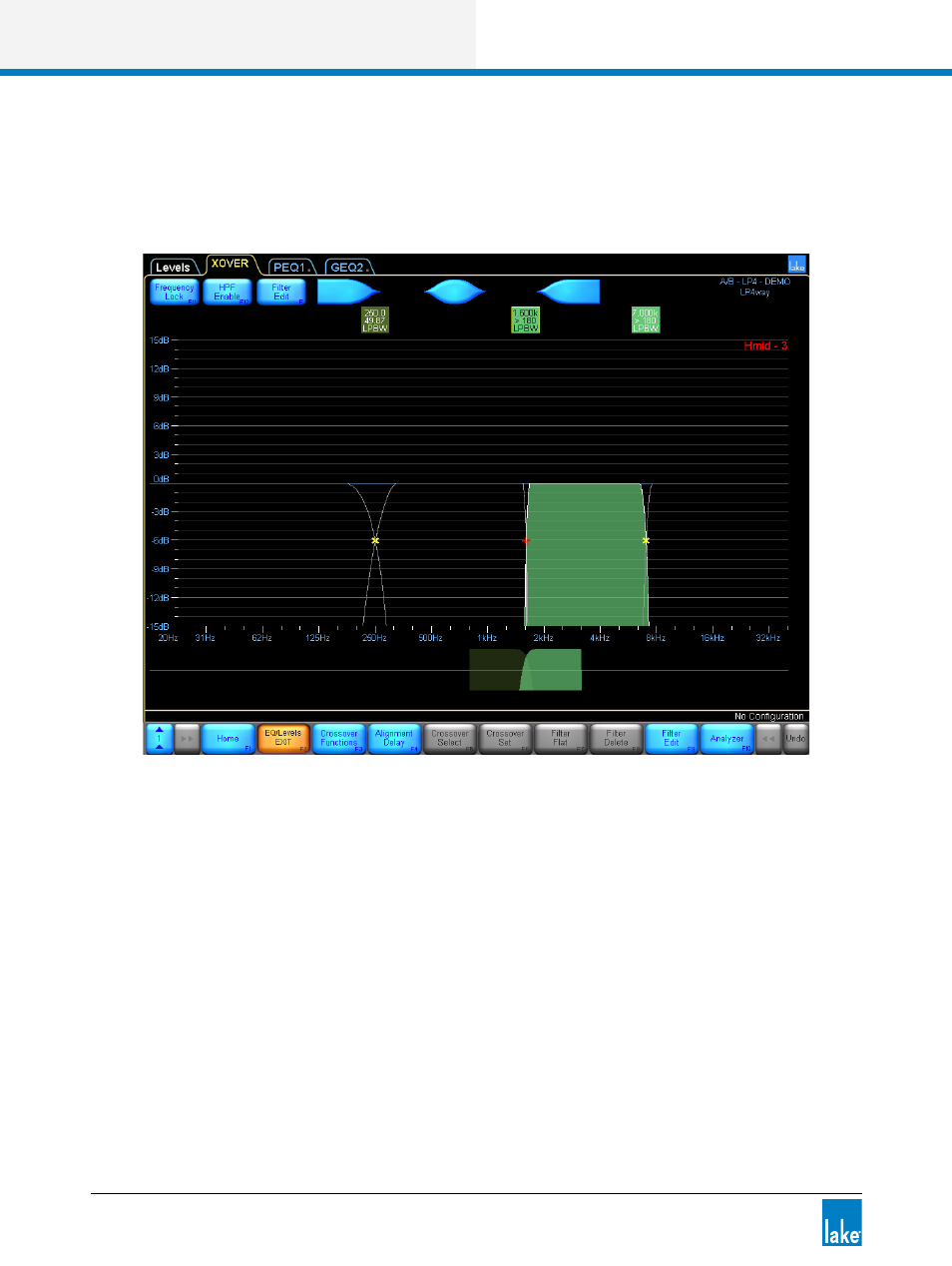

Figure 6-15: Linear Phase Crossover Screen
While most of the button bar functions are the same, some XOVER menu options and functions are differ-
ent for linear phase Modules. These differences are identified in the following sections.
6.4.4 Crossover Functions
CROSSOVER FUNCTIONS provides a submenu containing the following functions:
6.4.4.1 HPF/LPF Functions
▸ HPF/LPF FUNC EXIT exits this menu and returns to the CROSSOVER FUNCTIONS menu.
▸ INPUT HPF SETs the HPF to affect all output channels for the Module (depending on the frequency of
the HPF and outputs). Applicable to Contour Modules only.
